NEMA 6-50: What It Is and When You Need It for EV Charging
Your electrician quoted you a NEMA 6-50. Or your charger specs list it as the required outlet type. Either way, you want to know what it is, how it differs from the more common NEMA 14-50, and whether it's the right call for your installation. Here's everything you need to know.
What Is a NEMA 6-50 Outlet?
A NEMA 6-50 is a 240-volt, 50-amp electrical outlet — a three-wire configuration with two hot conductors and a ground, but no neutral wire. The name follows the same NEMA convention: 6 is the configuration type (two hots plus ground), and 50 is the amperage rating.

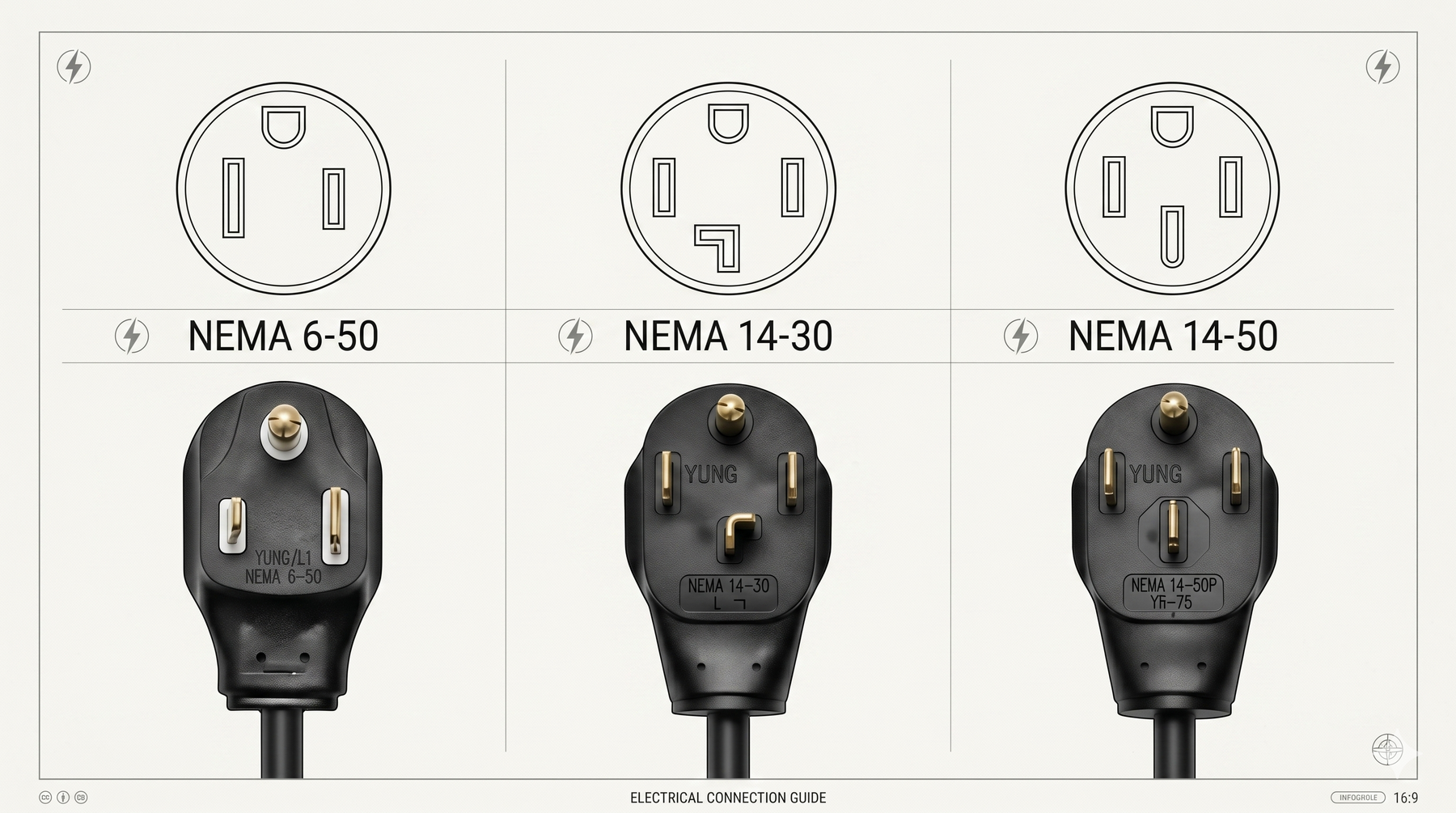

It's most commonly seen in welding shops and some commercial HVAC applications, but it also appears in EV charging setups — particularly for certain charger models and older installations. If you look at the diagram above, the NEMA 6-50 is on the left: three slots, no neutral, distinct T-shaped ground pin orientation.
NEMA 6-50 vs. NEMA 14-50: What's the Actual Difference?
Both outlets deliver 240V at 50 amps. The difference comes down to wiring configuration — and that determines which chargers are compatible.
| Feature | NEMA 6-50 | NEMA 14-50 |
|---|---|---|
| Voltage | 240V | 240V |
| Amperage | 50A | 50A |
| Wires | 3 (2 hot, ground — no neutral) | 4 (2 hot, neutral, ground) |
| Neutral wire | No | Yes |
| Common uses | EV charging, welders, some HVAC | EV charging, electric ranges, RVs |
| Charger compatibility | Specific chargers only — check specs | Widest range of Level 2 chargers |
| Installation cost | Slightly lower (one fewer wire) | Standard |
The key practical difference: A NEMA 6-50 has no neutral wire. Most modern Level 2 chargers are designed for NEMA 14-50 and require all four wires. Before committing to a NEMA 6-50 installation, confirm your specific charger model supports it — not all do.
When Does a NEMA 6-50 Make Sense?
There are a few scenarios where a NEMA 6-50 is the right call:
Your charger requires it
Some Level 2 charger models are designed specifically for NEMA 6-50. If your charger specs list it, that's your answer — install what the manufacturer requires.
Existing 6-50 wiring in place
If your home already has a NEMA 6-50 outlet — from a welder or previous owner — and your charger supports it, you may be able to use it as-is. Have an electrician verify the circuit is up to code first.
Outside of those two situations, the NEMA 14-50 is generally the better choice for a new EV charger installation. It's compatible with a wider range of chargers, and if you upgrade your charger down the road, you're less likely to need new outlet work.
What Circuit Do You Need?
A NEMA 6-50 requires a dedicated 50-amp, 240-volt circuit with a 50-amp double-pole breaker — the same as a NEMA 14-50. The wiring is typically 6-gauge copper (6/2 NM-B for indoor runs, or 6/2 THWN in conduit for exposed runs). The absence of the neutral wire is the only wiring difference compared to a 14-50 installation.
The 80% rule applies here too: On a 50-amp NEMA 6-50 circuit, your charger draws a maximum of 40 amps continuously — 80% of the circuit rating as required by NEC code. This is standard and by design.
Is NEMA 6-50 Installation Cheaper Than 14-50?
Marginally — one fewer wire means slightly less material cost. In practice, the labor is essentially the same and the savings are modest, typically $20–$50. It's not a meaningful reason to choose one over the other. Choose based on what your charger requires and what's already in your home.
Do You Need a Permit?
Yes — same as any 240V dedicated circuit installation. Your electrician pulls the permit as part of the job. Skipping it puts your homeowner's insurance and resale value at risk. For the full permit walkthrough, see our guide on EV charger permits.
NEMA 6-50 vs. NEMA 14-50: Which Should You Install?
If your charger supports both, go with the NEMA 14-50. It's the more universal outlet, compatible with the broadest range of current and future Level 2 chargers, and your electrician will have done it hundreds of times.
If your charger requires a NEMA 6-50 specifically, install the 6-50. Don't try to adapt around it — use what the manufacturer specifies.
If you have an existing NEMA 6-50 outlet, check your charger's compatibility before assuming you can use it. Some chargers include a 6-50 adapter; others require the full four-wire 14-50 setup.
For a full side-by-side breakdown of how NEMA 6-50 compares to the NEMA 14-50 in practice, see our NEMA 14-50 outlet guide.
