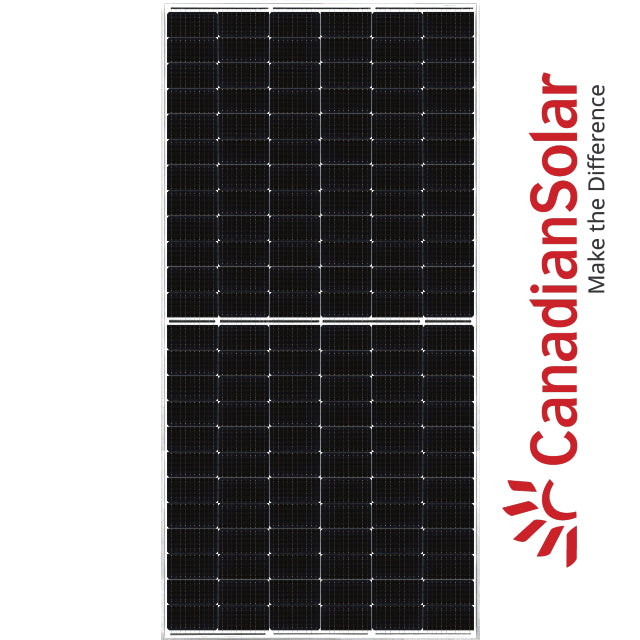

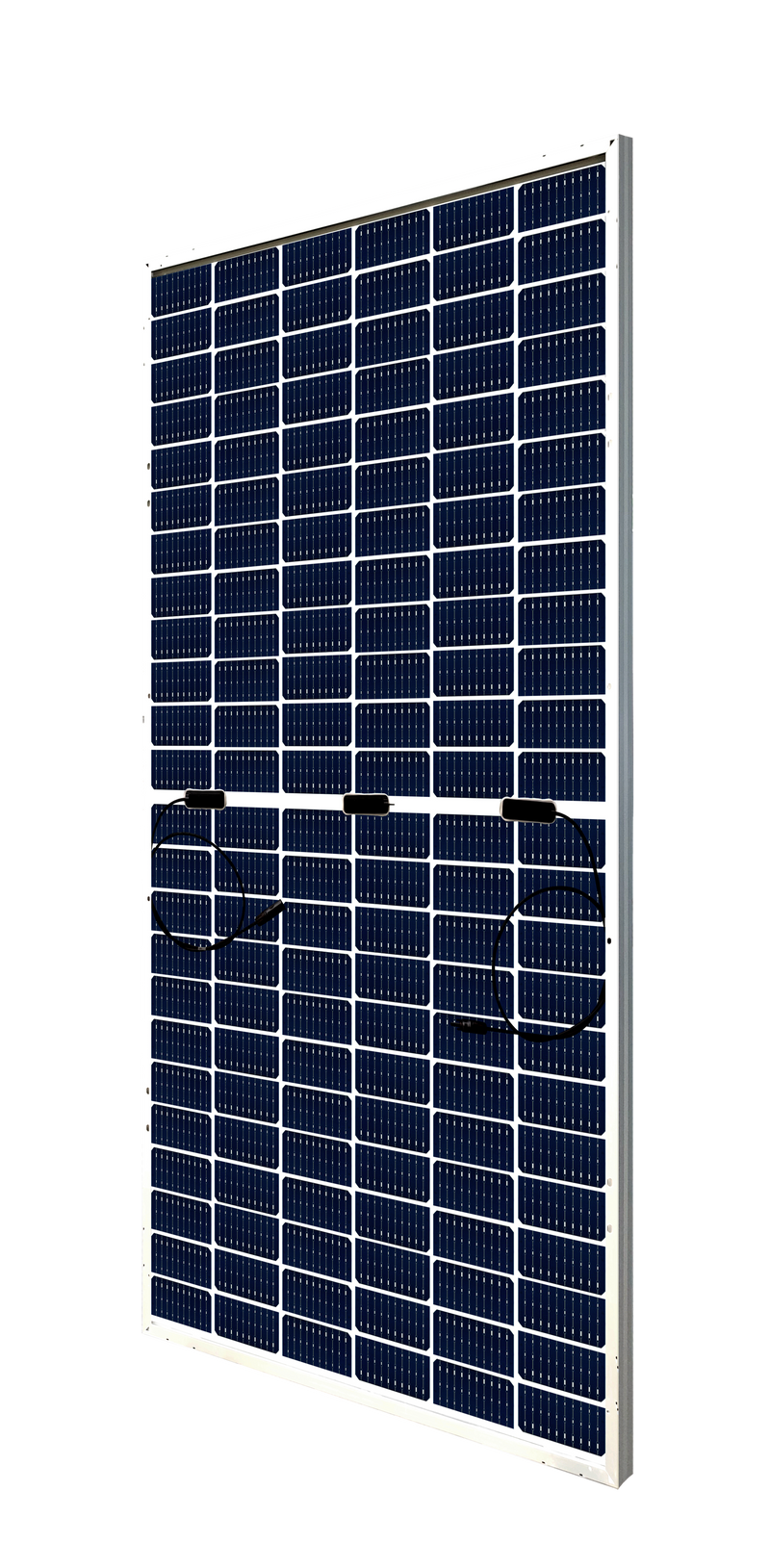

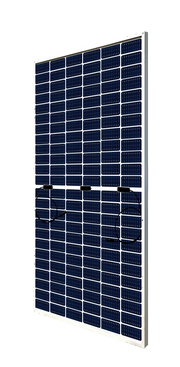

Canadian Solar 530W Bifacial Solar Panel | CS6W-530MB-AG
⚠ Before You Buy
Panels require a compatible inverter, racking system, and licensed installer. Buying panels without a confirmed inverter and mounting solution is the most common solar purchasing mistake.
The CS6W-530MB-AG ships individually — useful for filling out an existing array, replacing a damaged panel, or building a smaller system without committing to a full pallet. At 530W rated output with bifacial gain up to 640W in high-albedo environments, it performs at the high end of standard residential panel wattage.
N-Type monocrystalline cell technology gives the 530W a lower degradation rate than older PERC cells — typically 0.4–0.45% annually versus 0.5–0.55% for standard mono PERC. The IP68 junction box and 30-year linear power warranty are standard for Canadian Solar's tier-1 product line.
Bifacial panels perform best on ground mounts or elevated roof mounts with light-colored surfaces beneath. Flush roof mounting eliminates most bifacial benefit. Use our Build Your System guide to confirm compatibility before ordering.
| Model | CS6W-530MB-AG |
| Rated Power (Pmax) | 530W |
| Bifacial Gain (max) | Up to 640W |
| Cell Technology | N-Type monocrystalline |
| Junction Box Rating | IP68 |
| Power Warranty | 30-year linear |
| Ships | Individually |
| Brand | Canadian Solar (Tier-1) |
Ships with:
- 1x Canadian Solar CS6W-530MB-AG bifacial solar panel
- MC4 connectors (attached)
What you'll need:
- Compatible inverter (sized to your full array)
- Racking and mounting hardware
- Licensed solar/electrical installer
- Electrical permit and interconnection agreement (if grid-tied)
Shipping: Free standard shipping to all 48 continental U.S. states. Ships LTL freight — inspect all units before signing delivery receipts. Typical transit 5–10 business days.
Returns: 30-day return window. Uninstalled, original condition only. Contact support@chargeprodirect.com for warranty claims.
What is bifacial gain and when does it apply?
Bifacial gain is additional power from light hitting the rear of the panel — most significant on ground mounts over light-colored surfaces. Flush roof mounts eliminate most of the benefit.
Can I add this to an existing array?
Yes — this ships individually for exactly that use case. Confirm your inverter can handle the additional capacity and that existing panels' voltage and current are compatible for stringing.
What inverters are compatible?
The ~40V Voc is compatible with most string inverters, hybrid inverters, and MPPT charge controllers. Confirm your inverter's MPPT window fits your planned string configuration.
Not sure which panels fit your system?
Confirm your inverter, array size, and racking before ordering.
