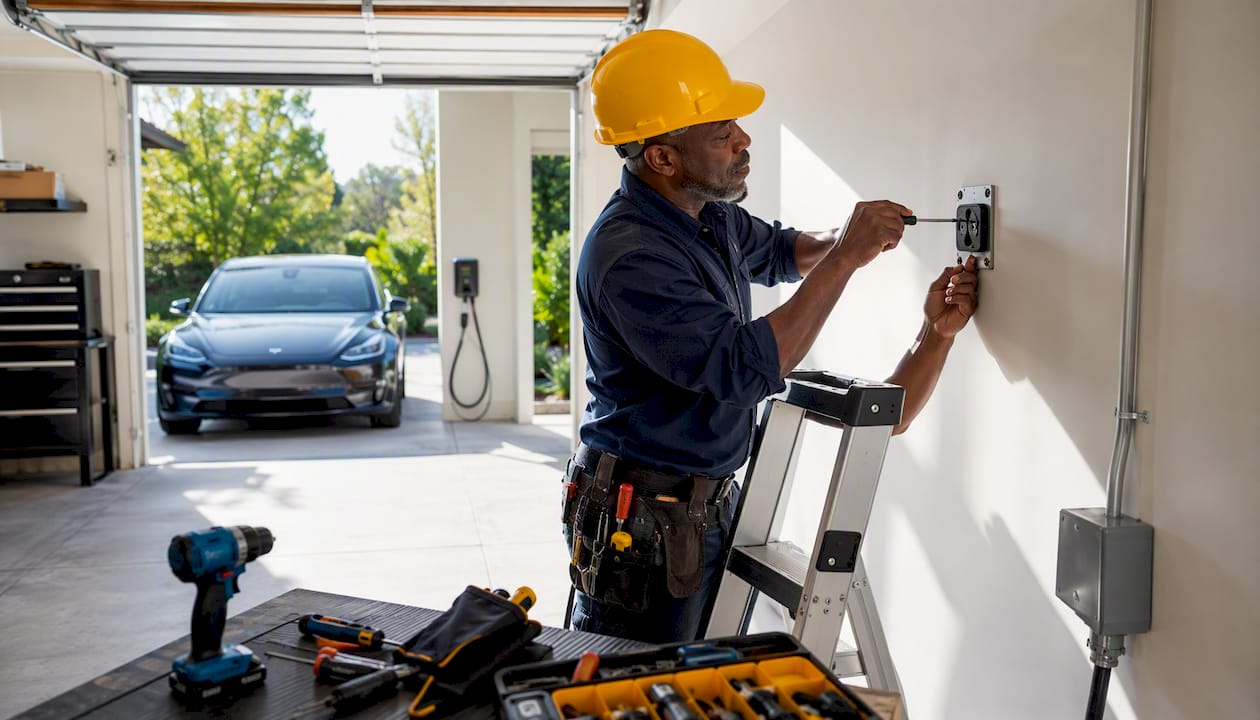

Electrician installing NEMA 14-50 outlet in garage
August 5, 2026 Charge Pro Direct

NEMA 14-50 for EV Owners: What You Need to Know

When EV owners search “14 50,” they’re looking for one thing: the NEMA 14-50 receptacle, a 240 V, four-prong outlet installed on a 50 A branch circuit and the most common plug-in Level 2 charging solution for home garages in the United States. If you already have one, or you’re planning to install one, here’s what actually matters before you plug in.

Three things to know right away:

  • The continuous-load rule under NFPA 70 / NEC limits your EV charger to about 40 A continuous on a 50 A circuit, not the full 50 A.
  • A plug-in NEMA 14-50 setup gives you portability; a hardwired Level 2 charger gives you fewer connection points and cleaner outdoor weatherproofing.
  • Always consult a licensed electrician and your local permit office before any installation.

If you’ve seen “14:50” in a different context, it’s also a 24-hour clock time equal to 2:50 PM, or a ratio that simplifies to 7/25. For EV charging purposes, the NEMA electrical meaning is what this guide covers.

Chargeprodirect carries EVIQO Level 2 chargers designed for NEMA 14-50 setups, and the sections below guide you through decisions from specs to installation to product selection.

Table of Contents

What the numbers in NEMA 14-50 actually mean

The designation “NEMA 14-50” follows a standardized naming system. The “14” identifies the configuration family with four conductors, and the “50” is the amperage rating of the receptacle.

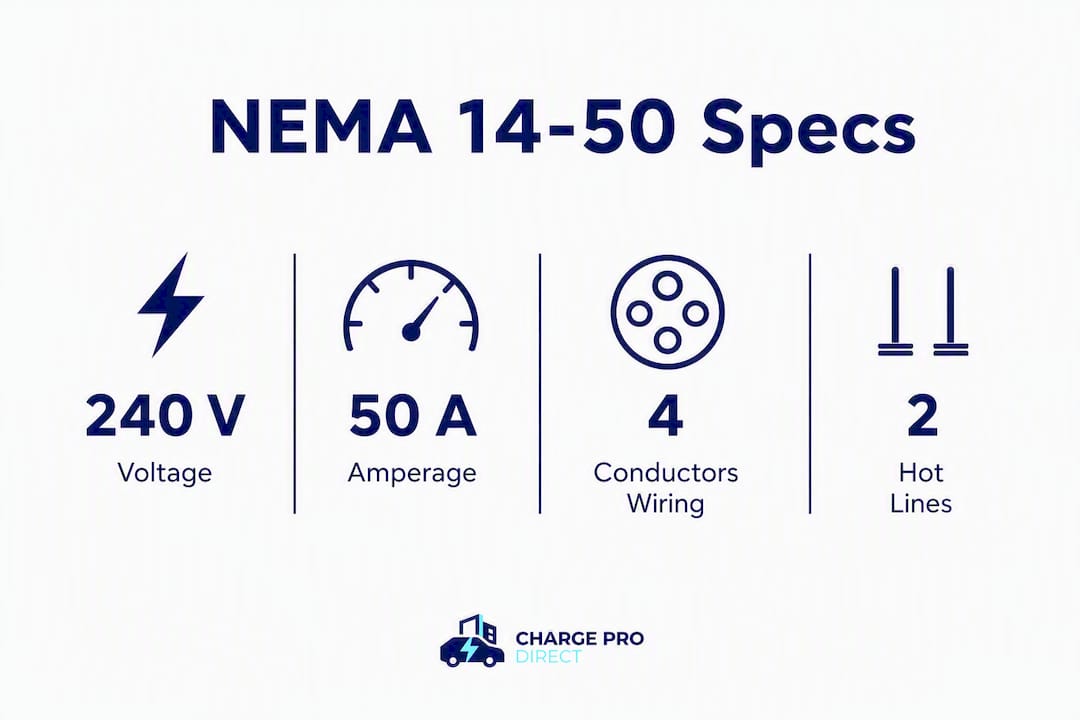

Infographic summarizing NEMA 14-50 electrical specifications

Put together, you get a 125/250 V, four-wire outlet rated for 50 A. In residential EV charging, it’s almost always wired for 240 V by using both hot legs, which is the same voltage your electric dryer or range uses.

The four conductors and what each does:

  • Hot leg 1 and Hot leg 2: Together they deliver 240 V for the EV charger’s motor and electronics.
  • Neutral: Carries return current for any 120 V loads on the circuit; some EV chargers don’t use it, but it’s part of the NEMA 14 standard.
  • Ground: Safety conductor that routes fault current to the panel, protecting you and the vehicle.

The branch circuit is typically protected by a breaker on a suitably gauged wire; your electrician will confirm the correct gauge based on run length and local code. The governing standard is NFPA 70 / NEC, which your local authority having jurisdiction (AHJ) enforces.

Spec Value
Voltage 240 V (125/250 V rated)
Ampere rating 50 A
Conductors 4 (2 hot, 1 neutral, 1 ground)
Typical breaker 50 A double-pole
Typical wire gauge 6 AWG copper
Common prior uses Electric ranges, RV hookups

Close-up of hands holding NEMA 14-50 wiring components

How fast does a NEMA 14-50 actually charge your EV?

The short answer: faster than a standard wall outlet, but not as fast as the receptacle’s nameplate suggests. Because EV charging is a continuous load, the NEC continuous-load rule caps the EVSE at 80 percent of the breaker’s capacity. On a 50 A circuit, continuous charging is typically limited to around 80% of the breaker’s capacity, making about 40 A the practical charging current ceiling.

The calculation you can reuse:

kW = (volts × amps) ÷ 1,000 Miles per hour ≈ kW ÷ vehicle efficiency (kWh per mile)

At 40 A on 240 V: 240 × 40 = 9,600 W, or approximately 9.6 kW. A vehicle using about 0.3 kWh per mile gains roughly 30 miles of range per hour of charging. A more efficient vehicle at 0.25 kWh per mile will charge closer to the high 30s in miles per hour.

Continuous amps Power (kW) Estimated miles/hr (approximate)
About 32 A — Moderate charging speed
About 40 A About 9.6 kW Faster charging speed
About 48 A — Higher charging speed, typical for hardwired larger circuits

The current around 48 A applies to hardwired setups on circuits larger than typical 50 A NEMA 14-50 branch circuits, like 60 A setups. Your vehicle’s onboard charger also sets a ceiling: if your car accepts a maximum of 7.2 kW, a 40 A EVSE won’t charge faster than that limit regardless.

Why homeowners choose a NEMA 14-50 setup

The NEMA 14-50 is widely used for residential EV charging because many homes already had these outlets installed for electric ranges or RV hookups, making repurposing for EV charging convenient without rewiring.

Homeowner plugging portable EV charger into outdoor outlet

Common reasons to choose a plug-in 14-50 setup include existing receptacles from previous appliances, rental situations where portability is important, moderate daily driving distances suited to typical charging currents, flexibility in swapping chargers, and initial cost considerations.

Where a 14-50 is less ideal:

  • Outdoor permanent installs where weatherproofing a plug connection is harder than hardwiring.
  • Situations where you want to run a higher continuous amperage in the future without rewiring.
  • High-cycle commercial or fleet use where receptacle wear becomes a real maintenance concern.

The Rewired Home guide on 14-50 notes that the plug-in approach trades portability for an extra connection point that can develop heat or wear over time, which is worth factoring into a long-term decision.

Plug-in NEMA 14-50 vs. hardwired Level 2: which one fits your situation?

Both options deliver Level 2 charging. The difference is in how the EVSE connects to your home’s wiring, and that difference has real consequences for installation cost, weatherproofing, and future flexibility.

Factor Plug-in NEMA 14-50 Hardwired Level 2
Max continuous amps 40 A (50 A circuit) 48 A (60 A circuit)
Connection points Plug + receptacle (wear point) Direct wire (no plug interface)
Install complexity Lower; receptacle + EVSE Higher; conduit, wire, no plug
Outdoor weatherproofing Harder; in-use cover needed Cleaner; sealed enclosure
Portability Yes; unplug and take it No; fixed installation
Future upsizing Requires new receptacle/circuit Easier with higher-amp circuit
Typical install cost Lower hardware cost Higher labor, lower long-term risk

Pick plug-in when:

  • You want portability or plan to move within a few years.
  • You have an existing 14-50R receptacle in good condition.
  • Your vehicle’s onboard charger tops out at 7.2 kW or 9.6 kW, so 40 A is plenty.

Pick hardwired when:

  • Your charger will live outdoors permanently.
  • You want 48 A continuous output for a high-capacity vehicle.
  • You prefer fewer connection points and a cleaner long-term install.

What an electrician does to install a 14-50 outlet

A straightforward garage install on an existing panel with available capacity often wraps up in a single day. More complex jobs, like a long conduit run or a panel upgrade, can stretch to two or more visits plus permit approval time.

Typical installation steps:

  1. Panel capacity check: Confirm available breaker slots and that the panel can handle a new 50 A double-pole breaker without exceeding total load.
  2. Permit pull: Your electrician pulls the electrical permit from your local building department before any work starts.
  3. Wire run: Run 6 AWG copper (or code-approved aluminum) from the panel to the outlet location, through conduit where required.
  4. Breaker installation: Install a 50 A double-pole breaker in the panel.
  5. Receptacle mounting: Mount the 14-50R in a listed electrical box with proper strain relief and a weatherproof cover if outdoors.
  6. Torque and termination: Torque all terminals to manufacturer spec; loose connections are a leading cause of heat damage.
  7. Inspection and test: Pass the AHJ inspection, then test with the EVSE before the job is signed off.

Cost factors to ask about upfront:

  • Distance from panel to outlet location (longer runs cost more in wire and labor).
  • Whether a GFCI or AFCI breaker is required by local code for garage or outdoor circuits.
  • Conduit type and routing complexity.
  • Receptacle grade (EV-rated vs. standard).
  • Local permit fees and inspection scheduling.

Questions to have ready for your electrician: What is my panel’s available capacity? Do I need a GFCI breaker for this circuit? Is a permit required in my jurisdiction? What wire gauge do you recommend for my run length?

Safety basics and code items that cause the most rework

The single most misunderstood rule in residential EV charging is the continuous-load sizing requirement. Because an EV charger runs for hours at a time, the NEC classifies it as a continuous load, which means the circuit breaker must not be loaded above 80 percent during continuous operation. A 50 A breaker supports 40 A continuous. Period.

GFCI and AFCI considerations:

Some jurisdictions require GFCI protection for garage and outdoor receptacles. A GFCI breaker or GFCI-rated EVSE satisfies this requirement, but nuisance tripping is a real trade-off that homeowners should discuss with their electrician before choosing a solution. The requirement varies by local code, so confirm with your AHJ.

Pro Tip: Ask your electrician whether a GFCI-compatible EVSE can satisfy the protection requirement instead of a GFCI breaker. Some EVSE units include built-in ground fault protection, which can reduce nuisance trips.

Common mistakes that cause heat or failure:

  • Using a standard household-grade 14-50R receptacle instead of an EV-rated or heavy-duty unit designed for repeated high-current insertions.
  • Loose terminations at the breaker, receptacle, or EVSE connection.
  • Skipping torque specs on terminals.
  • Undersized wire for the run length.

Red flags that mean stop charging and call an electrician:

  • The plug or receptacle feels warm to the touch after a charge session.
  • Visible discoloration or melting on the plug or outlet face.
  • The breaker trips repeatedly without a clear cause.
  • Any burning smell near the outlet or panel.

Chargeprodirect carries three EVIQO Level 2 chargers that cover the most common 14-50 and hardwired scenarios. All three use the J1772 connector, which is the standard for non-Tesla EVs. Tesla owners can use a J1772-to-Tesla adapter.

Model Amps Power Connection Best for
EVIQO 40A Plug-In 40 A 9.6 kW NEMA 14-50 plug Moderate daily driving, existing 14-50R
EVIQO 48A Plug-In 48 A — NEMA 14-50 plug Higher-capacity vehicles, plug-in preference, but typically limited to 40 A continuous by the NEC on a 50 A circuit
EVIQO 48A Hardwired 48 A (50 A max) — Hardwired Outdoor permanent installs, supports full 48 A output on a 60 A circuit

What to check on any spec sheet before buying:

  • Continuous amp rating: Confirm the EVSE’s rated continuous output matches your circuit’s 80 percent limit.
  • IP rating: For outdoor installs, look for IP54 or higher.
  • UL listing: Confirms the unit meets U.S. safety standards.
  • Configurability: Some units let you dial down amperage to match a lower-capacity circuit.
  • Warranty and support: Confirm warranty length and whether the seller offers installation referrals.

The EVIQO 40A is the practical choice for most homeowners with an existing 14-50R and moderate daily driving. The 48A plug-in suits vehicles with higher onboard charger capacity. The hardwired 48A is the right call for outdoor permanent installs or anyone who wants the cleanest long-term setup.

Parts and accessories you’ll need for a safe 14-50 setup

Beyond the EVSE itself, a few parts determine whether your install is safe and durable.

Essential parts:

  • EV-rated NEMA 14-50R receptacle: Leviton’s 1450R is a purpose-built, heavy-duty EV charging receptacle designed for repeated high-current insertions, unlike standard household outlets.
  • Listed electrical box: Sized for the receptacle and conduit entry, with proper strain relief.
  • In-use weatherproof cover: Required for outdoor receptacles; keeps moisture out when the plug is inserted.
  • Appropriate conduit: EMT or PVC depending on your local code and installation environment.

Accessories worth considering:

  • Cord management hooks or reels: Keep the EVSE cable off the garage floor between charges.
  • Lockable inlet covers: Useful for outdoor installs where security matters.
  • Weatherproof enclosure: For outdoor plug-in setups, a listed enclosure around the receptacle adds protection beyond a basic in-use cover.

When selecting a receptacle, choose EV-rated or heavy-duty commercial grade. Standard 14-50 outlets are rated for occasional use; an EV charger runs them hard every night. Confirm torque specs with the manufacturer and follow them exactly during installation.

Troubleshooting common 14-50 charging problems

Most charging failures have a simple first-step fix. Work through these before calling an electrician.

Step-by-step troubleshooting:

  1. Check the breaker first. A tripped breaker is the most common cause of a dead outlet. Reset it once; if it trips again immediately, stop and call an electrician.
  2. Inspect the plug and receptacle. Look for discoloration, melting, or any sign of heat. If you see either, do not plug back in.
  3. Wiggle test. A loose fit between plug and receptacle suggests receptacle wear. Replace it.
  4. Check EVSE error codes. Most modern EVSE units display fault codes; consult the manufacturer’s guide for the specific code.
  5. Try a different vehicle if possible. This isolates whether the issue is the EVSE or the vehicle’s onboard charger.

Simple annual maintenance:

  • Visually inspect the plug and receptacle face for discoloration or pitting.
  • Have your electrician confirm terminal torque at the receptacle and breaker during any scheduled electrical work.
  • Replace the receptacle if you notice looseness or heat marks; EV-grade receptacles are not expensive relative to the risk.

Call an electrician immediately for: visible heat damage, burning odor, arcing sounds, or a breaker that trips repeatedly after a reset.

A decision checklist for choosing your 14-50 setup

Work through these questions before you buy a charger or schedule an install.

Your checklist:

  1. Daily driving distance: Do you drive more than 30 miles per day? If so, 40 A overnight charging will fully recover most EVs. Higher daily mileage may push you toward a 48 A hardwired setup.
  2. Vehicle onboard charger limit: Check your owner’s manual. If your car accepts a maximum of 7.2 kW, a 40 A EVSE is all you need.
  3. Panel capacity: Ask your electrician whether your panel has an open 50 A double-pole slot and sufficient total capacity.
  4. Indoor vs. outdoor placement: Outdoor installs favor hardwired setups for weatherproofing. Indoor garage installs work well with plug-in.
  5. Future-proofing: If you plan to buy a higher-capacity EV in the next few years, a hardwired 60 A circuit now avoids rewiring later.
  6. Portability need: Renters or frequent movers should lean toward plug-in.

Questions for your electrician:

  • Is there panel space for a 50 A double-pole breaker without a panel upgrade?
  • Does local code require GFCI protection on this circuit?
  • Is a permit required, and what is the typical inspection timeline?

Red flags that may push you toward a hardwired install or panel upgrade:

  • Panel is at or near capacity.
  • Outdoor placement with no existing weatherproof enclosure.
  • You want 48 A continuous output, which requires a 60 A circuit, not a 50 A NEMA 14-50 branch circuit.

For a broader look at Level 2 home chargers by amperage, Chargeprodirect’s collection page lets you compare 32 A, 40 A, and 48 A options side by side.

How Chargeprodirect supports you from selection through installation

Chargeprodirect does more than ship a box. The team provides personalized sizing guidance before you buy, so you’re not guessing whether a 40 A or 48 A unit fits your panel and vehicle.

What you get when you buy through Chargeprodirect:

  • Personalized product selection help based on your vehicle, panel capacity, and daily driving needs.
  • Spec sheets and documentation your electrician can use during the install.
  • Installation referrals to connect you with qualified local electricians.
  • Flexible payment options and free shipping on orders.
  • Warranty support and post-purchase guidance.

If you’re planning a home energy upgrade alongside EV charging, pairing your charger with a solar and battery system can offset the added load on your utility bill over time.

Key Takeaways

A NEMA 14-50 receptacle on a 50 A branch circuit delivers up to 40 A continuous Level 2 EV charging under the NEC’s 80 percent continuous-load rule, making it the most practical plug-in home charging option for most EV owners.

Point Details
80% continuous-load rule A 50 A circuit supports 40 A continuous charging; plan your EVSE selection around this limit.
Plug-in vs. hardwired Plug-in suits renters and moderate drivers; hardwired is better for outdoor installs and 48 A output.
EV-rated receptacle required Use a heavy-duty EV-grade 14-50R, not a standard household outlet, for repeated high-current use.
Licensed electrician required Panel checks, permits, torque specs, and GFCI decisions all require a qualified professional.
Chargeprodirect EVIQO options The EVIQO 40A plug-in, 48A plug-in, and 48A hardwired cover the full range of 14-50-compatible setups.

The case for getting the receptacle right before anything else

Most of the installation problems I see discussed come down to one skipped step: choosing the wrong receptacle grade. A standard 14-50 outlet rated for occasional range or RV use is not the same as an EV-grade unit built for nightly high-current cycles. The plug-in convenience of a NEMA 14-50 setup depends on using components rated specifically for the high current and frequent use of EV charging, including breaker, wiring, and receptacle.

The portability argument for plug-in is also stronger than critics give it credit for. If you rent, or if you’re not sure how long you’ll stay in your current home, a plug-in EVIQO unit on a properly installed 14-50R gives you a charger you can take with you. That’s a genuine advantage over a hardwired unit that stays with the house.

Where I’d push back on the “just plug it in” mindset: outdoor installs. A plug connection exposed to moisture, temperature swings, and UV degradation is a maintenance liability that a hardwired setup simply doesn’t have. If your garage is indoors and climate-controlled, plug-in is fine. If the charger lives on an exterior wall, hardwire it.

Chargeprodirect makes it easy to get the right charger for your home

Picking the wrong charger for your panel and vehicle is one of the most common pre-installation mistakes, and it’s entirely avoidable. Chargeprodirect’s personalized sizing guidance walks you through your power situation before you spend a dollar, so you arrive at checkout with the right unit, not a return label.

Chargeprodirect

The EVIQO lineup covers every common home scenario: the 40A plug-in for standard 14-50 setups, the 48A plug-in for higher-capacity vehicles, and the 48A hardwired for permanent outdoor installs. All ship free, and Chargeprodirect connects you with installation referrals so you’re not left finding an electrician on your own. Use the EV Charger Finder to match a unit to your vehicle and panel in minutes.

Useful sources

Always consult a licensed electrician and your local code authority (AHJ) before installing or modifying any electrical circuit. This article is general educational information, not professional electrical or legal advice.

FAQ

What is a 14-50 outlet used for?

A NEMA 14-50 outlet is used for high-draw 240 V appliances, most commonly electric ranges, RV hookups, and Level 2 EV charging. For EV owners, it’s the standard plug-in home charging receptacle on a 50 A branch circuit.

Is NEMA 14-50 the same as 240 V?

Yes, in residential EV charging applications a NEMA 14-50 is wired for 240 V using both hot legs of the circuit. The receptacle itself is rated 125/250 V, but EV chargers use the full 240 V configuration.

What does 14-50 mean in electrical terms?

The “14” identifies the four-conductor NEMA configuration (two hots, one neutral, one ground), and the “50” is the ampere rating of the receptacle. Together they describe a 240 V, 50 A, four-prong outlet.

What is a 14-50 plug for EV charging?

A 14-50 plug connects a portable Level 2 EVSE to a NEMA 14-50R wall receptacle, delivering up to 40 A continuous charging (9.6 kW) under the NEC’s 80 percent continuous-load rule. It’s the J1772 standard connector on the vehicle side for non-Tesla EVs.

Do I need a licensed electrician to install a NEMA 14-50?

Yes. Installing a new 50 A branch circuit requires panel work, proper wire sizing, and a permit in most U.S. jurisdictions. A licensed electrician handles the breaker, wiring, torque specs, and inspection sign-off.

Filed in: 14 50, en
Previous article 10 Common EV Charger Installation Mistakes Homeowners Make
Next article How to Charge Cars: Guide for Homes and Fleets
