10 Common EV Charger Installation Mistakes Homeowners Make
The most common EV charger installation mistakes are skipping a professional load calculation, choosing the wrong charger power level, undersizing the circuit, ignoring permits, and attempting DIY on high-voltage wiring. Each one is preventable with the right preparation.
Do this now:
- Take a photo of your electrical panel and note the main breaker amperage
- Call a licensed electrician to schedule a formal load calculation before buying any equipment
- Contact your local building department to confirm permit requirements for a new 240V circuit
- Never attempt to wire a 240V EV circuit yourself without a licensed electrician
- Plan your cable route from the panel to the parking spot before ordering equipment
- Check federal, state, and utility rebate programs before purchasing your charger
Here is every mistake this article covers:
- Skipping a professional load calculation
- Choosing the wrong charger power level or type
- Incorrect circuit, breaker, or conductor sizing
- Poor charger placement and missing cable management
- Skipping permits and inspections
- DIY installs or hiring unqualified installers
- Choosing hardwired vs. plug-in for the wrong reasons
- Failing to plan for maintenance and missing rebates
- Underestimating timeline and cost drivers
- Missing the two expert steps most homeowners overlook
Table of Contents
- 1. Skipping a professional load calculation puts your panel at risk
- 2. Choosing the wrong charger power level wastes money or limits charging speed
- 3. Incorrect breaker sizing and conductor selection is a serious safety risk
- 4. Poor charger placement and missing cable management cause daily problems
- 5. Skipping permits and inspections creates expensive problems later
- 6. DIY installs and unqualified electricians create liability and safety hazards
- 7. Choosing hardwired vs. plug-in for the wrong reasons limits your options
- 8. Skipping maintenance planning and rebate research costs you money
- 9. Underestimating the timeline and cost drivers leads to rushed decisions
- 10. Two expert steps most homeowners miss prevent the majority of faults
- Key Takeaways
- The installation step most homeowners undervalue
- Chargeprodirect helps you get the right charger before installation day
- Useful sources
- FAQ
1. Skipping a professional load calculation puts your panel at risk
A professional load calculation is the first step, not an optional add-on. Before you select a charger or schedule an electrician, you need to know whether your panel can actually handle the additional load.
Level 2 chargers draw sustained high-amperage loads of 30–48 amps continuously. Under NEC rules, a continuous load is defined as one that runs for three or more hours, and your panel must be sized to handle it without tripping breakers or overheating conductors. Many homeowners assume their existing panel has room. Often it does not, especially in homes with electric dryers, HVAC systems, water heaters, or electric ranges already pulling significant amperage.
Pro Tip: Before your electrician visits, gather your most recent utility bill showing peak demand, a photo of your panel with the main breaker amperage visible, a list of your major appliances and their amperage ratings, and the model number of the charger you are considering. This cuts the site visit time and gives your electrician everything needed to complete the load calculation on the spot.
Your panel capacity is the single number that determines whether your project is a straightforward install or a costly panel upgrade. Get that number confirmed first.
Ask your electrician:
- What is the available spare capacity on my panel after accounting for all existing loads?
- Do I need a panel upgrade, or can a load-management device avoid that cost?
- Is my meter socket rated for the total load after adding EV charging?
2. Choosing the wrong charger power level wastes money or limits charging speed
Not every vehicle can accept every charger’s maximum output. Buying a 48A hardwired charger for a vehicle that accepts only 7.2kW (about 30A) does not make your car charge faster. It just means you paid more for hardware your car cannot use.
The practical decision comes down to your vehicle’s onboard charger acceptance rate, your panel’s available capacity, and whether you want future flexibility. A home energy audit before purchasing helps you match the charger to both your car and your home.
Quick decision checklist:
- 32A: Adequate for most EVs with onboard chargers rated at 7.2kW or less; works on a 40A dedicated circuit
- 40A: Good fit for vehicles accepting up to 9.6kW; the EVIQO 40A NEMA 14-50 plug-in covers this range with plug-in convenience
- 48A: Required for vehicles accepting 11.5kW or higher; hardwiring is typically required at this amperage level
- 50A smart charger: The Growatt THOR 50A smart charger adds scheduling and load management features for homeowners who want grid-smart charging
Common mismatches to avoid:
- Buying a 48A charger when your vehicle’s onboard charger tops out at 32A
- Purchasing a plug-in model when your target amperage may require hardwiring
- Ignoring the vehicle’s J1772 inlet rating and assuming all EVs charge at the same speed
- Skipping connector compatibility checks for non-Tesla vehicles
Pro Tip: If you plan to add a second EV in the next few years, run conduit sized for the larger wire gauge now, even if you pull smaller wire today. Retrofitting conduit later through finished walls costs far more than oversizing it during the initial install.
Use the EV charger finder tool at Chargeprodirect to match a charger to your specific vehicle and panel situation before you buy.
3. Incorrect breaker sizing and conductor selection is a serious safety risk
Undersized wiring and incorrect breaker selection are among the most dangerous and most common EV charger installation errors. The mistake usually happens when someone matches the charger’s rated amperage directly to the breaker size without accounting for continuous-load rules.
Under NEC guidelines, a circuit supplying a continuous load must be sized so the load does not exceed 80% of the circuit’s rated ampacity. A 48A charger therefore requires a circuit rated higher than 48A, not exactly a 48A one. Pulling the wrong wire gauge for the run length compounds the problem, because voltage drop increases with distance and thinner wire heats up faster under sustained load.
A dedicated circuit is non-negotiable for EV charging. Sharing a circuit with other loads, even intermittent ones, creates cumulative demand that breakers and conductors were not sized to handle. Inspectors routinely reject shared-circuit EV installations, and the resulting reinspection fees and rework costs far exceed the cost of doing it right the first time.
Ask your electrician to verify:
- The circuit is dedicated to EV charging only, with a labeled breaker in the panel
- Conductor gauge is appropriate for both the amperage and the total run length
- The breaker is sized for continuous load, not just the charger’s nameplate amperage
- All terminations are torqued to the manufacturer’s specification
- The correct RCD or RCBO type is installed (see Section 11 for RCD type guidance)

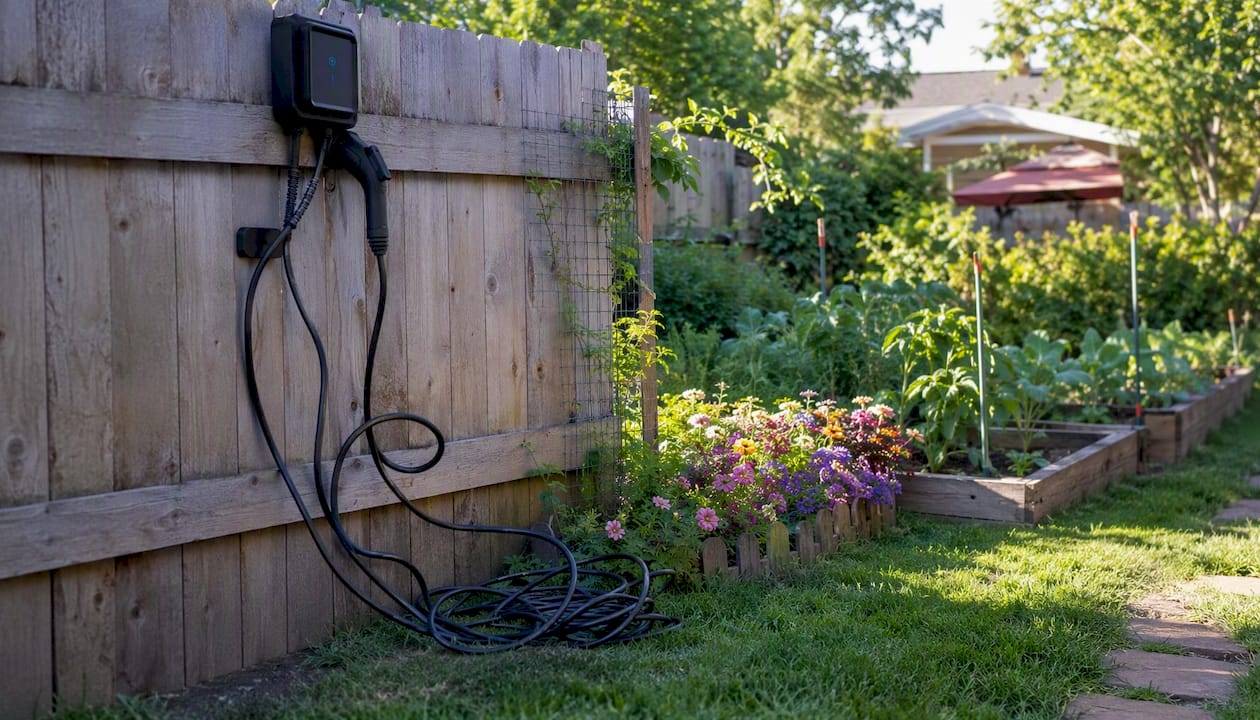

4. Poor charger placement and missing cable management cause daily problems
Where you mount the charger matters as much as what charger you buy. A unit mounted too high strains the connector cable every time you plug in. One mounted too low creates a trip hazard. And a charger with no cable management turns a garage wall into a tangle of wire that wears through faster than it should.
Mount the charger at a height where the connector hangs naturally without pulling on the cable, at a comfortable and practical height for your usage. Plan the cable length so it reaches your vehicle’s charge port with a few inches of slack, not a taut stretch across the hood.
Cable management checklist:
- Install a cable holster or hook so the connector is stored off the floor
- Route all wiring through conduit or raceway, especially for exposed garage runs
- Keep cable paths away from vehicle tire tracks and walkways
- Protect any exterior conduit runs from UV exposure and physical damage
- Use weatherproof conduit fittings for any penetrations through exterior walls
Long wire runs also increase material and labor costs and can cause voltage drop that reduces charging efficiency. Placing the charger on the wall closest to your panel is almost always the right call.
Pro Tip: For outdoor installations, a simple awning or eave overhang above the charger reduces direct sun and rain exposure. UV and moisture are the two main causes of premature housing and cable degradation on outdoor units, and a small weather shield costs almost nothing compared to an early replacement.
5. Skipping permits and inspections creates expensive problems later
Skipping a permit and inspection can void your homeowner’s insurance and disqualify you from federal tax credits and utility rebates. Most jurisdictions require an electrical permit for any new 240V circuit, and the inspection that follows validates that the breaker, wiring, and grounding meet code. Without that sign-off, you have no documentation that the work was done correctly.
Permit costs for a 240V circuit installation vary depending on your jurisdiction, but are typically modest relative to the potential costs of unpermitted work.
Permit checklist for homeowners:
- Confirm permit requirements with your local building or electrical department before work begins
- Verify your electrician pulls the permit in their name (not yours, unless you are the owner-builder)
- Schedule the rough-in inspection before walls are closed
- Request a final inspection sign-off and keep the paperwork with your home records
- Update your panel directory label to reflect the new EV circuit breaker
The National Electrical Code sets the baseline for EV charging installations nationwide, but your local Authority Having Jurisdiction (AHJ) may have additional requirements. Always check both.
6. DIY installs and unqualified electricians create liability and safety hazards
DIY wiring on a 240V, 50A circuit is unsafe and, in most jurisdictions, illegal without a licensed electrician. The risks include arc faults, overheating conductors, improper grounding, and failed inspections that require complete rework. Beyond the safety issues, unpermitted DIY work can void your homeowner’s insurance policy.
Hiring the wrong electrician is nearly as risky. An electrician unfamiliar with EV-specific requirements may size the circuit incorrectly, skip the load calculation, or use indoor-rated components in an outdoor location.
Hiring checklist:
- Verify the electrician holds a current state electrical license
- Confirm they carry general liability and workers’ compensation insurance
- Ask specifically about their experience with EVSE (Electric Vehicle Supply Equipment) installations
- Request references from at least two recent EV charger installs
- Confirm they will pull the permit and be present for the inspection
Red flags to watch for:
- Offers to skip the permit to save time or money
- Cannot or will not provide a load calculation
- Proposes using indoor-rated wire or components in an outdoor or exposed location
- Unwilling to provide as-built photos or a labeled panel directory after completion
After installation, ask for a labeled panel directory update, as-built photos of the wiring run, and all installer paperwork needed for your permit inspection and rebate applications.
7. Choosing hardwired vs. plug-in for the wrong reasons limits your options
The choice between hardwiring and using a NEMA 14-50 plug-in outlet is not about which is “better.” It is about matching the connection method to your vehicle’s needs, your desired maximum current, and how permanent you want the installation to be.
| Feature | Hardwired | NEMA 14-50 Plug-In |
|---|---|---|
| Maximum continuous current | Up to 48A+ (limited by circuit) | Generally up to 40A continuous |
| Portability | Fixed; requires electrician to move | Unplug and take with you |
| Charger replacement | Requires electrician | DIY swap in minutes |
| Best for | Highest-speed charging, permanent installs | Flexibility, lower-acceptance vehicles |
| Typical warranty impact | Confirm with manufacturer | Confirm with manufacturer |
Hardwiring provides the highest continuous current capability, which is why chargers rated at 48A or higher are typically required to be hardwired. The EVIQO 48A hardwired charger is a strong fit for high-acceptance vehicles where maximum overnight charging speed matters.
A plug-in via NEMA 14-50 outlet is a legitimate choice when your vehicle’s onboard charger tops out at 40A or less, you want the flexibility to take the charger with you, or you anticipate swapping charger models in the future. Review the NEMA 14-50 outlet guide to understand the outlet’s ratings and limitations before deciding.
Always confirm the manufacturer’s guidance on connection type before installation. Some charger warranties specify a preferred connection method.
8. Skipping maintenance planning and rebate research costs you money
A charger is a long-term electrical appliance. Treating it like a set-and-forget device leads to missed firmware updates, degraded cables, and protection-device faults that could have been caught early.
Basic annual maintenance checklist:
- Visual inspection of the cable sheath and connector for cracks or wear
- Test the RCD or RCBO by pressing the test button and confirming it trips correctly
- Check all mounting hardware for tightness
- Confirm the charger’s firmware is current per the manufacturer’s app or website
- Inspect any outdoor conduit or weatherproofing for damage
On the incentive side, checking for rebates before you buy is just as important as the installation itself. Federal tax credits, state programs, and utility rebates can meaningfully reduce your total cost, but most require documentation you need to collect at purchase and installation time.
Where to look for incentives:
- Federal: IRS clean energy credits (confirm current eligibility with a tax professional)
- State programs: Check your state energy office website
- Utility rebates: Call your utility or check their website directly; many offer $100–$500 rebates for Level 2 charger installation
- DSIRE database: dsireusa.org catalogs state and utility incentive programs by ZIP code
Keep your purchase receipt, permit paperwork, and installer documentation together. Most rebate applications require all three.
9. Underestimating the timeline and cost drivers leads to rushed decisions
A realistic timeline from decision to final inspection is typically four to eight weeks for a straightforward install, longer if a panel upgrade is needed. Rushing any step, especially the permit and inspection process, is one of the most common mistakes with EV charger setup.
Typical timeline milestones:
- Week 1: Load calculation, charger selection, permit application submitted
- Weeks 2–3: Permit approval (varies widely by jurisdiction)
- Week 3–4: Electrician scheduled; equipment arrives
- Week 4–5: Installation completed; rough-in inspection scheduled
- Week 5–6: Final inspection and sign-off
- Panel upgrade (if needed): Add two to four weeks for utility coordination
Major cost drivers to budget for:
| Cost Driver | Notes |
|---|---|
| Panel upgrade | Needed when spare capacity is insufficient; cost varies significantly by region |
| Wire and conduit | Longer runs require heavier gauge wire; long runs increase material and labor costs |
| Trenching or concrete work | Required for exterior or underground runs to a detached garage |
| Electrician labor | Varies by region, job complexity, and whether a permit inspection is included |
| Permit fees | Commonly $50–$150 for a 240V circuit permit in most jurisdictions |
| Charger hardware | Ranges from basic plug-in units to smart hardwired models |
Spending correctly upfront on the right wire gauge, proper conduit, and a thorough load calculation avoids the most expensive outcome: tearing out completed work to fix undersized conductors or a missed permit. See the EV charger installation costs guide for a deeper breakdown of regional cost variability.
Energy management and load-sharing devices are worth evaluating early. They can dynamically limit EV charging when other high loads run, sometimes eliminating the need for a panel upgrade entirely.
10. Two expert steps most homeowners miss prevent the majority of faults
Professional load calculation and engineered placement solve most downstream faults before they happen. But there are two more specific steps that experienced installers do and most homeowners never think to ask about.
The first is RCD and RCBO type verification. RCD tripping is the single most common EV charger fault reported by homeowners, and the cause is almost always a mismatched protection device. Older Type AC RCDs trip erratically with EV chargers because EV rectification produces DC fault components that Type AC devices cannot reliably detect. Type A RCDs are the commonly recommended minimum for EV circuits; some charger manufacturers require Type B. Check your charger’s installation manual for the specific requirement and confirm with your electrician before the circuit is wired.
The second is installation documentation. Many installations that fail inspection do so because of missing documentation. Inspectors expect an updated load calculation, a labeled panel directory showing the new EV circuit breaker, and clear installer paperwork. As-built photos of the wiring run are not always required but consistently reduce reinspection risk.
Pro Tip: Many charger “faults” are actually protection-device or grounding issues, not charger defects. Before assuming the unit is broken, ask your electrician to verify the RCD type, confirm the grounding conductor is correctly terminated, and check that the circuit is truly dedicated with no shared loads. This short diagnostic step resolves most reported faults without a hardware replacement.
Questions to ask your installer and inspector:
- What RCD or RCBO type did you install, and does it match the charger manufacturer’s requirement?
- Is the grounding conductor terminated correctly at both the panel and the charger?
- Is the circuit labeled in the panel directory?
- Can you provide as-built photos for my permit file?
- Has the load calculation been documented and is it available for the inspector?
Key Takeaways
Avoiding the most common EV charger installation mistakes comes down to three things: a professional load calculation before you buy, a licensed electrician with EV experience, and permits pulled and inspected before you close the walls.
| Point | Details |
|---|---|
| Get a load calculation first | Confirm panel spare capacity before selecting charger amperage or scheduling installation. |
| Match charger to vehicle acceptance rate | Buying more amperage than your vehicle can accept wastes money; check the onboard charger rating first. |
| Size circuits for continuous loads | NEC rules require the load to stay within 80% of circuit capacity; a 48A charger needs a 60A circuit. |
| Pull permits and keep documentation | Permits protect your insurance, rebate eligibility, and resale value; keep all paperwork together. |
| Chargeprodirect for charger selection | Chargeprodirect offers free sizing guidance and a charger finder tool to match the right unit to your home and vehicle before you buy. |
The installation step most homeowners undervalue
Most of the advice you will read about EV charger installation focuses on the charger itself. Pick the right amperage, get a dedicated circuit, hire a licensed electrician. All of that is correct. But the step that actually prevents the most expensive problems is the one that happens before any of it: a thorough pre-installation conversation with a knowledgeable electrician and a retailer who understands your home’s power situation.
The charger is the easy part. A quality Level 2 unit from a reputable source will work reliably for years. The hard part is the infrastructure behind it: panel capacity, wire gauge, conduit routing, RCD type, permit paperwork. Homeowners who skip that groundwork and focus only on the hardware end up with the most common and most costly installation errors.
There is also a tendency to treat the hardwired vs. plug-in decision as purely a convenience question. It is not. It is a current-capacity question first. If your vehicle accepts 48A and you want to use all of it, hardwiring is the answer. If you need portability or your vehicle tops out at 40A, a plug-in NEMA 14-50 setup is perfectly appropriate and easier to service. Neither is universally better. The right answer depends entirely on your specific vehicle, panel, and parking situation.
One more thing worth saying plainly: the permit is not bureaucratic overhead. It is the only independent verification that the work was done correctly. An inspector who signs off on your installation is confirming that a licensed professional sized the circuit properly, grounded it correctly, and left your home safer than before. That sign-off is worth every dollar of the permit fee.
Chargeprodirect helps you get the right charger before installation day
Picking the wrong charger before the electrician arrives is one of the most avoidable and most common EV charger setup mistakes. Chargeprodirect’s free sizing guidance matches you to the right Level 2 charger based on your vehicle’s acceptance rate and your home’s available panel capacity, so you are not guessing when the electrician asks what you ordered.

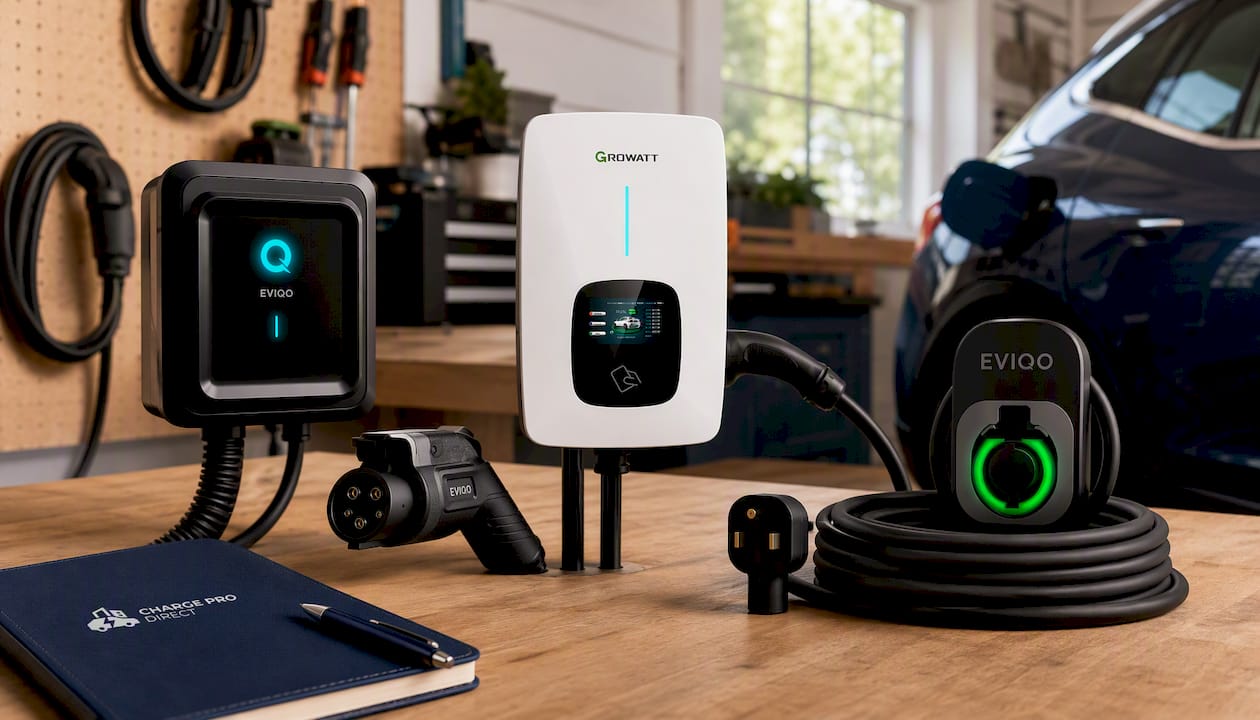

The product lineup covers the full range of residential needs. The EVIQO 48A hardwired charger is built for high-acceptance vehicles and permanent installs. The EVIQO 40A NEMA 14-50 plug-in gives you portability without sacrificing meaningful charging speed. And the Growatt THOR 50A smart charger adds scheduling and load management for homeowners who want grid-aware charging. All orders ship free, and flexible payment options are available. Use the EV charger finder to get a personalized recommendation now.
Useful sources
Every homeowner planning an EV charger installation should bookmark these resources and check them before work begins:
- Getting Started with Home EV Charging | US EPA: Federal guidance on home charging safety, charger types, and installation basics
- National Electrical Code | CPSC: The baseline electrical safety standard referenced by inspectors nationwide
- DSIRE Database: Searchable database of state and utility incentive programs by ZIP code
- Consumer Reports: EV Charging Problems: Real-world data on common charging issues homeowners report
- Chargeprodirect Learning Hub: Deep-dive guides on charger types, amperage selection, panel capacity, and installation costs
Contact your local Authority Having Jurisdiction (your city or county building department) and your utility company directly for permit requirements and available rebates specific to your address. Requirements vary significantly by jurisdiction, and both sources can confirm what documentation your inspector will expect.
This article provides general information for planning purposes. Consult a licensed electrician and your local AHJ for requirements specific to your home and jurisdiction.
FAQ
What is the most common EV charger installation mistake?
Skipping a professional load calculation is the single most frequent error. Homeowners often assume their panel has spare capacity, but a Level 2 charger draws 30–48 amps continuously and requires a dedicated circuit sized correctly for that sustained load.
Do I need a permit to install a Level 2 EV charger at home?
Most jurisdictions require an electrical permit for any new 240V circuit. Skipping the permit can void your homeowner’s insurance and disqualify you from federal and utility rebates; permit fees commonly run $50–$150.
What is the difference between a hardwired and plug-in EV charger?
Hardwired chargers support higher continuous current (48A and above) and are required for the highest charging speeds. Plug-in chargers using a NEMA 14-50 outlet are limited to roughly 40A continuous but offer portability and easier charger replacement without an electrician.
Why does my EV charger keep tripping the breaker?
The most likely cause is a mismatched RCD or RCBO type. Older Type AC protection devices trip erratically with EV chargers because of DC fault components from EV rectification. A licensed electrician should verify the protection device type matches your charger manufacturer’s requirement.
Where can I find rebates for home EV charger installation?
Check the DSIRE database at dsireusa.org for state and utility programs by ZIP code, contact your utility directly, and confirm current federal tax credit eligibility with a tax professional. Keep your purchase receipt, permit paperwork, and installer documentation, as most rebate applications require all three.
