Homeowner installing EV charging outlet
July 28, 2026 Charge Pro Direct

DIY EV Charging Outlet Options: What Homeowners Should Pick

For most DIY-minded homeowners who own their home and plan to stay, a 240V hardwired Level 2 circuit running 48A on a 60A breaker is the best balance of speed, reliability, and code compliance. If you want flexibility or you’re renting, a NEMA 14-50 plug-in setup is the practical runner-up.

Quick TLDR:

  • Fastest realistic option: Hardwired 48A Level 2 charger on a 60A breaker, delivering a fast charging range per hour
  • Renter-friendly option: NEMA 14-50 plug-in charger (40A continuous), so you can take the charger when you move
  • Temporary fallback: NEMA 14-30 dryer outlet or existing 120V outlet for low-mileage situations only
  • DIY scope: You can plan routing, mount conduit, and prep the location yourself. Panel work, breaker installation, load calculations, and final terminations should go to a licensed electrician in most U.S. jurisdictions.

Table of Contents

What are your DIY EV charging outlet options, and how fast does each charge?

Understanding the charging level differences is the fastest way to narrow down which outlet actually fits your life. Level 1 uses a standard 120V household outlet, the same one powering your phone charger. It’s slow but requires zero installation. Level 2 uses a 240V circuit, the same voltage your electric dryer runs on, and it charges several times faster.

Here’s how the most common outlet types map to real-world charging speeds:

Outlet (NEMA) Circuit Amperage Continuous Usable Current Approx. Miles Added Per Hour
NEMA 5-15 (standard 120V) 15A 12A ~4 miles/hr
NEMA 14-30 (dryer outlet) 30A 24A ~20 miles/hr
NEMA 10-30 (older 3-prong dryer) 30A 24A ~20 miles/hr
NEMA 6-50 50A 40A ~21–35 miles/hr
NEMA 14-50 50A 40A ~30–35 miles/hr
Hardwired (60A breaker) 60A 48A ~35–45 miles/hr

A note on the NEMA 10-30: This older 3-prong outlet lacks a dedicated ground wire, which is a real safety concern for continuous EV loads. If you have one in your garage, do not use it as a long-term EV charging solution. Upgrade to a grounded 4-prong outlet like the NEMA 14-50 instead.

The NEMA 14-50 is the most widely recommended plug-in outlet for Level 2 portable chargers because it supports up to 40A continuous, works with nearly every portable EVSE on the market, and is easy to unplug and take with you. For more detail on how the 14-50 compares to the 6-50, Chargeprodirect has a dedicated NEMA 14-50 outlet guide worth bookmarking.

Plug-in receptacle vs. hardwired Level 2 charger: which should you choose?

This is the decision most homeowners wrestle with longest, and the answer usually comes down to two questions: how long are you staying, and how much daily range do you need?

Dimension Plug-In (NEMA 14-50 or 6-50) Hardwired
Max continuous output 40A (50A breaker) 48A (60A breaker)
Portability Yes, take it when you move No, permanently installed
GFCI requirement Required per NEC 625.54 for 50A-or-less cord-and-plug Exempt from receptacle GFCI rule
Nuisance trip risk Higher with some EVSE models Lower
Wear points Receptacle and plug can loosen or overheat over time No plug connection to degrade
Serviceability Swap the charger without an electrician Requires electrician to change charger
Best for Renters, frequent movers, flexibility seekers Long-term homeowners wanting max speed

Electrician wiring Level 2 EV charger breaker

Since the 2020 NEC, receptacles rated 150V or less to ground and 50A or less used for cord-and-plug EVSE require GFCI protection. That protection is the right call for safety, but some EVSE models do nuisance-trip GFCI breakers under normal operation. Hardwiring sidesteps that issue entirely because hardwired EVSE is exempt from the same receptacle GFCI requirement.

Hardwired installations also eliminate the plug connection as a potential failure point. Under continuous 40A loads, a cheap NEMA 14-50 receptacle can overheat. If you go plug-in, use a hospital-grade or industrial-rated receptacle, not the $12 version from a home center.

Rule of thumb: Renters and anyone who might move within three years should go plug-in NEMA 14-50. Homeowners planning to stay should hardwire, especially if they want 48A output, since that amperage requires hardwiring to stay within code. You can explore the full plug-in vs. hardwired comparison on Chargeprodirect’s learning hub.

Can you DIY a 240V outlet? Permits, code basics, and when to call a pro

Yes, with important limits. A competent DIYer can plan the circuit route, mount conduit, install an electrical box, and prep the location. What you should not do yourself, in most U.S. jurisdictions, is open the panel, install a new breaker, or make final terminations without a permit and, often, a licensed electrician.

Here is the typical process to follow before touching any wiring:

  1. Check your panel capacity. Request or perform an NEC 220.82 load calculation to confirm your service panel has headroom for a new 50A or 60A circuit. Many panel-upgrade quotes turn out to be unnecessary once the math is done.
  2. Verify permit requirements. Most U.S. jurisdictions require a permit for any new 240V branch circuit or hardwired EVSE. Contact your local authority having jurisdiction (AHJ) before starting.
  3. Select breaker and wire size. EV charging is a continuous load under the NEC, so you must size the breaker at 125% of the charger’s maximum current draw. A 40A charger needs a 50A breaker; a 48A charger needs a 60A breaker.
  4. Plan your conduit run. Map the shortest, most protected path from the panel to your parking spot. Outdoor or exposed runs require conduit.
  5. Schedule an inspection. Book the inspection before you close up any walls or bury conduit. Inspectors check breaker sizing, wire gauge, GFCI compliance, and labeling.

Permit and safety checklist:

  • Pull a permit before any work begins
  • Apply the NEC continuous-load 80% rule (usable current = 80% of breaker rating)
  • Install GFCI protection for any cord-and-plug receptacle rated 50A or less
  • Torque all terminals to the manufacturer’s specification
  • Use weatherproof covers for any outdoor receptacle
  • Label the circuit “EV Charging, Continuous Load” at the panel

Pro Tip: If an electrician quotes you a panel upgrade without first running an NEC 220.82 load calculation, ask for the calculation in writing before agreeing. Many homes have more capacity than a quick visual inspection suggests.

Wiring basics: how to size your breaker, wire, and conduit correctly

Breaker sizing for EV charging follows one consistent rule: because EV charging is a

, the usable continuous current must not exceed 80% of the breaker’s rating. That means a 40A continuous load requires a 50A breaker, and a 48A continuous load requires a 60A breaker.

Wire gauge must match the breaker. Common pairings used in home EV installs:

  • 12 AWG copper for a 20A breaker (Level 1 or light-duty Level 2)
  • 8 AWG copper for a 40A breaker, supporting 32A continuous
  • 6 AWG copper for a 60A breaker, supporting 48A continuous

Romex (NM cable) vs. THHN in conduit: Romex is fine for concealed indoor runs inside finished walls or through studs. For any outdoor run, exposed garage wall run, or underground segment, you need THHN conductors pulled through conduit. THHN has a better heat rating and mechanical protection that NM cable simply cannot match. A good rule: if the wire will be visible or exposed to weather, use conduit.

GFCI and AFCI requirements depend on your local NEC adoption cycle and the type of install. Cord-and-plug setups in garages typically require GFCI protection. Hardwired EVSE avoids the receptacle GFCI requirement, but check your local AHJ for any additional AFCI mandates in garage circuits.

Wiring types and conduit for EV charger install

Pro Tip: Always torque your terminal connections to the spec printed on the device or breaker. A loose lug under a 40A continuous load will overheat, and that is how fires start. A $20 torque screwdriver is cheap insurance.

How do you choose the right outlet setup for your home and EV?

Work through this checklist and the right answer usually becomes obvious:

  • Do you own your home? If no, go plug-in NEMA 14-50 so you can take the charger when you leave.
  • How long do you plan to stay? Under three years: plug-in. Three-plus years: hardwire.
  • How many miles do you drive daily? Under 40 miles: a NEMA 14-50 plug-in at 40A is plenty. Over 40 miles regularly: consider hardwired 48A for the extra buffer.
  • Does your panel have capacity? Run the NEC 220.82 numbers first. If you need a home energy audit to confirm, do it before buying hardware.
  • What is your budget for the install? Plug-in installs cost less upfront; hardwired installs cost more but deliver better long-term reliability.
  • Is the install location outdoors or exposed? You will need weatherproof covers, conduit, and a weatherproof-rated EVSE or receptacle.

Decision flow:

  • Renter or frequent mover: NEMA 14-50 plug-in, 40A charger
  • Homeowner staying put, under 40 miles/day: NEMA 14-50 plug-in or hardwired 40A
  • Homeowner staying put, over 40 miles/day or wants max speed: hardwired 48A on a 60A breaker
  • Low-mileage driver or plug-in hybrid owner: existing 120V outlet or NEMA 14-30 as a temporary measure

Compatibility reminder: Before buying any charger, confirm your EV’s onboard charger amperage limit. Some vehicles cap AC charging at 32A or 40A regardless of what the outlet can supply. Check how many amps your charger actually needs to avoid over-buying circuit capacity. Also verify your EVSE uses a J1772 connector if you drive a non-Tesla EV.

What does the installation process actually look like?

Whether you are doing the work yourself or supervising an electrician, knowing the sequence keeps the project on track and avoids costly rework.

  1. Site planning. Choose the outlet location, measure the distance from the panel, and map the conduit route. Shorter runs cost less and reduce voltage drop.
  2. Load calculation. Run or request an NEC 220.82 load calculation to confirm panel capacity before purchasing any materials.
  3. Pull the permit. Submit your plan to the local AHJ. Many jurisdictions now have a streamlined EV permit path. Do not start wiring before the permit is issued.
  4. Panel prep. A licensed electrician installs the new 2-pole breaker and confirms available space. This step is not DIY-safe in most jurisdictions.
  5. Run the circuit. Route conduit and pull wire from the panel to the outlet location. DIYers can mount conduit and boxes; final wire terminations at the panel should go to a licensed electrician.
  6. Mount the receptacle or hardwire the EVSE. Install the outlet box, make up connections, and mount the charger. Torque all terminals to spec.
  7. Final inspection. The inspector checks breaker size, wire gauge, GFCI compliance, labeling, and weatherproofing. Schedule this before closing up any walls.
  8. Commission and test. Energize the circuit, verify voltage at the outlet with a multimeter, plug in the EVSE, and confirm the vehicle charges at the expected rate without tripping the breaker.

Stop and call a licensed electrician immediately if you find aluminum wiring in the panel, if the panel is a recalled brand, or if you are unsure about any termination. Working on a live panel is not a calculated risk worth taking.

What does a home EV charger install actually cost?

Cost ranges vary widely depending on panel capacity, run length, and whether you need conduit or a panel upgrade. Here are realistic ranges to frame your budget:

  • Simple NEMA 14-50 receptacle install (short indoor run, panel has capacity): roughly $200–$600 in labor and materials
  • Hardwired Level 2 install (longer run, conduit, permit): typically $400–$1,200 in labor and materials
  • Panel upgrade (when genuinely needed): can add $1,500–$3,000 or more on top of the charger install

Before agreeing to a panel upgrade: Always request an NEC 220.82 load calculation in writing. Many homes have enough capacity to add a 50A or 60A circuit without upgrading the panel. Skipping this step is how homeowners end up paying for upgrades they do not need.

Timeline from booking to first charge typically runs two to six weeks, mostly driven by permit review and inspector scheduling. The actual labor for a straightforward install is two to six hours once the permit is in hand. Factors that extend the timeline include long conduit runs, drywall work, trenching for outdoor runs, and backlogged inspectors.

Smart chargers with load management capability can sometimes eliminate the need for a panel upgrade entirely by throttling charger output when your home’s overall electrical demand spikes. If your panel is close to capacity, ask about load-managing chargers before committing to an upgrade. For a full breakdown of cost line items, Chargeprodirect’s EV charger installation cost guide covers what to expect in each scenario.

Tools and materials you will need for a 240V EV outlet install

Having the right materials ready before the electrician arrives saves time and avoids a second trip charge.

Wire and breakers:

  • 6 AWG copper THHN (for 60A/48A circuits) or 8 AWG copper (for 50A/40A circuits)
  • 2-pole breaker sized to the circuit (50A or 60A)
  • GFCI breaker if installing a cord-and-plug receptacle in a garage

Conduit and boxes:

  • Schedule 40 PVC or EMT conduit for exposed or outdoor runs
  • Weatherproof electrical box and in-use cover for outdoor receptacles
  • Conduit fittings, straps, and connectors

Receptacle (if plug-in):

  • Hospital-grade or industrial-rated NEMA 14-50 receptacle (spend the extra $40–$80 here)
  • For NEMA 6-50 installs, see Chargeprodirect’s NEMA 6-50 outlet guide for compatibility notes

Tools:

  • Torque screwdriver (set to terminal spec)
  • Non-contact voltage tester and multimeter (CAT III or CAT IV rated)
  • Conduit bender (for EMT runs)
  • Drill and bits for studs and masonry

Safety:

  • Insulated gloves and safety glasses
  • Lockout/tagout device for the main breaker
  • Voltage tester to confirm the circuit is dead before touching any wire

Never skip the lockout/tagout step. Verify the circuit is de-energized with a tester before making any connection, even if you just turned off the breaker yourself.

Common mistakes and how to avoid them

Most DIY EV charging problems trace back to a handful of avoidable errors.

Mistakes that cause real problems:

  • Undersized wire or breaker. Using 10 AWG wire on a 50A breaker is a fire hazard. Match wire gauge to breaker rating every time.
  • Shared circuits. EV charging must be on a dedicated circuit. Sharing with a dryer, freezer, or any other load is a code violation and a safety risk.
  • Skipping the load calculation. Adding a 50A circuit to a panel that is already near capacity can cause nuisance tripping or worse. Run the NEC 220.82 numbers first.
  • Cheap receptacles. A standard $12 NEMA 14-50 from a home center is not rated for continuous 40A loads. Use industrial or hospital-grade hardware.
  • Loose connections. A lug that is finger-tight instead of torqued to spec will overheat under continuous load.

Troubleshooting common symptoms:

  • Breaker trips during charging: Check that the breaker is sized correctly for the continuous load (80% rule). Also check for a loose connection at the receptacle or panel.
  • Slow charging speed: Confirm the EVSE is set to the correct amperage and that the vehicle’s onboard charger limit is not capping the rate.
  • Intermittent connection or charger errors: Inspect the receptacle for heat damage or looseness. A worn NEMA 14-50 receptacle under heavy use is a common culprit.

Call a licensed electrician immediately if you see scorch marks near any outlet or breaker, smell burning plastic, or notice the receptacle is warm to the touch after a charging session.

Your next steps: a short action list

You now have everything you need to move forward confidently. Here is what to do next, based on your situation:

  • All homeowners: Request or run an NEC 220.82 load calculation before buying any hardware or agreeing to a panel upgrade.
  • Renters or frequent movers: Order a plug-in NEMA 14-50 charger and have an electrician install a dedicated 50A circuit with an industrial-grade receptacle.
  • Homeowners staying put: Choose hardwired 48A if your panel has a 60A slot available. It is faster, more reliable, and cleaner long-term.
  • Low-mileage drivers or plug-in hybrid owners: A NEMA 14-30 or even a 120V outlet may be enough for now. Revisit when your daily miles increase.
  • Anyone close to panel capacity: Ask about load-managing smart chargers before committing to a panel upgrade. They can save you a significant amount of money.

Key Takeaways

For most DIY homeowners, a hardwired 48A Level 2 circuit on a 60A breaker is the fastest, most reliable, and most code-compliant home EV charging solution available.

Point Details
Best plug-in outlet NEMA 14-50 supports 40A continuous and works with nearly every portable EVSE.
NEC continuous-load rule Size your breaker at 125% of charger current: 40A charger needs a 50A breaker, 48A needs a 60A breaker.
When to hardwire Hardwire when you plan to stay long-term, want 48A output, or want to avoid GFCI nuisance trips.
Load calculation first Always run an NEC 220.82 load calculation before agreeing to a panel upgrade.
Chargeprodirect guidance Chargeprodirect offers personalized product selection and expert guidance to match the right EVIQO charger to your panel capacity and daily needs.

The part most DIYers get wrong

Here is the honest truth about DIY EV charging installs: the electrical work itself is rarely the hard part. The hard part is knowing where to stop.

Most homeowners who get into trouble do so at the panel. They are confident with conduit, comfortable with a drill, and comfortable reading a wiring diagram. Then they open the panel, see a full bus, and make a judgment call that should have gone to a licensed electrician. That judgment call is where fires and failed inspections come from.

The smarter move is to treat the panel as a hard boundary. Do everything up to it: plan the route, mount the conduit, pull the wire to the panel location, and prep the outlet box. Then hand off the breaker installation, load calculation, and final terminations to a pro. You save money on labor hours, you stay safe, and the permit inspection goes smoothly because a licensed electrician signed off on the critical connections.

The other thing most guides underplay is the load calculation. An NEC 220.82 calculation is not bureaucratic paperwork. It is the only reliable way to know whether your panel can handle a new 50A or 60A circuit without oversubscribing the service. Running it before you buy hardware takes an hour and can save you thousands in unnecessary panel upgrade costs.

Ready to charge faster? Chargeprodirect can help you pick the right setup

Choosing the right charger is easier when you know exactly what your panel can support and how many miles you need each night. Chargeprodirect specializes in matching homeowners to the right EV charging hardware, without the guesswork of generic retail.

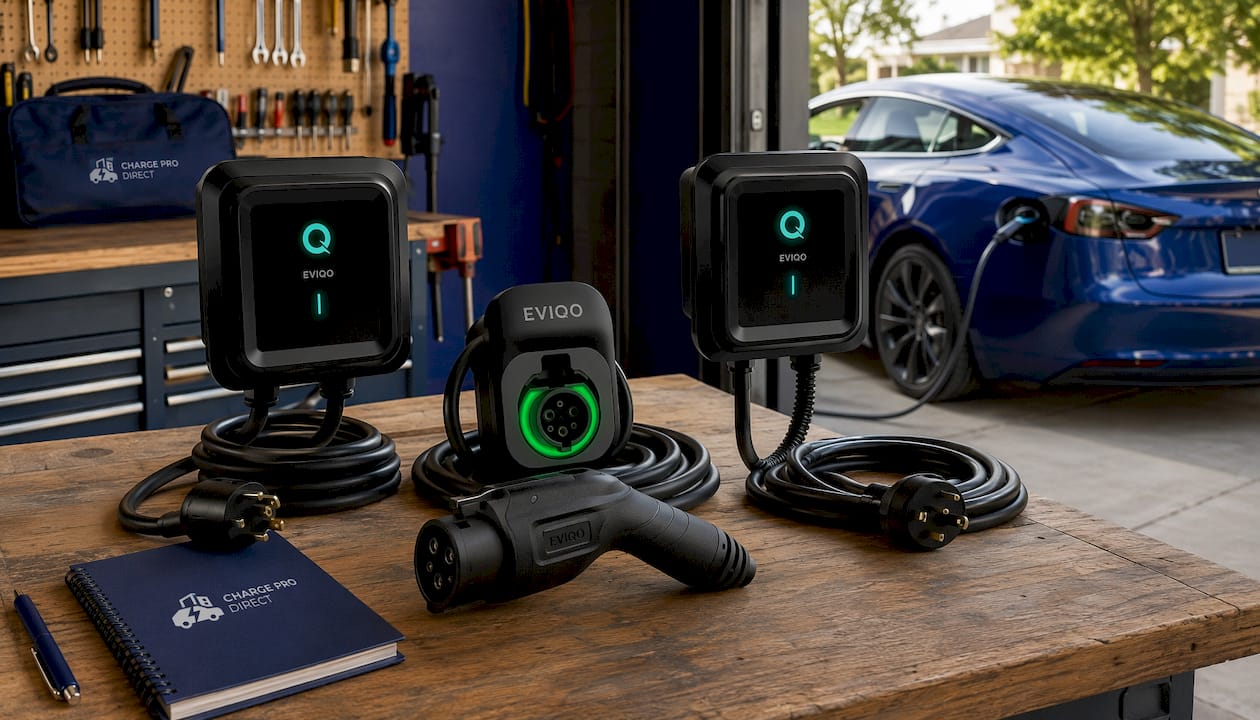

EVIQO Level 2 EV Charger, 48A (50A Max), 240V, Hardwired, J1772 for Non-Tesla EVs

For homeowners who want a permanent, high-speed setup, the EVIQO 48A hardwired charger delivers up to 48A continuous on a 60A breaker, with a J1772 connector compatible with virtually all non-Tesla EVs. If you prefer plug-in flexibility with a NEMA 14-50 receptacle, the EVIQO 40A plug-in model gives you 9.6kW of Level 2 charging you can take with you if you move. And for homeowners who want plug-in portability at higher amperage, the EVIQO 48A NEMA 14-50 plug-in delivers 11.5kW through a standard 14-50 receptacle.

All three ship free. Chargeprodirect’s team can walk you through which model fits your panel capacity and daily driving needs before you buy. Visit Chargeprodirect to get personalized guidance and find the right charger for your home.

Useful sources and further reading

These are the primary code and practical resources referenced throughout this article. Always verify which NEC edition your local jurisdiction has adopted, since many cities lag one or two cycles behind the current code.

  • NEMA.org — official NEMA outlet standards and plug type specifications
  • NEC 2026 EV charger rules summary — covers NEC 625.54 GFCI requirements, continuous-load rules, and NEC 220.82 load calculation guidance
  • PermitDeck EV charger install and permit guide — practical permit process, smart charger load management notes, and timeline expectations
  • PermitDeck NEC code reference for EV chargers — wire gauge and breaker sizing tables
  • NeoCharge outlet type guide — NEMA outlet compatibility and miles-per-hour estimates
  • Chargeprodirect Learn Hub — homeowner guides on charger selection, amperage, installation costs, and energy audits

Keep these two rules top of mind on every install: apply the NEC continuous-load 80% rule to every breaker and wire selection, and always run an NEC 220.82 load calculation before adding a new 240V circuit. Those two steps prevent the majority of DIY EV charging mistakes.

This article is general educational information, not professional electrical or legal advice. Confirm current NEC adoption, local permit requirements, and your specific panel capacity with your local authority having jurisdiction or a licensed electrician before starting any work.

FAQ

What kind of outlet can you use to charge an EV at home?

You can use a standard 120V outlet (NEMA 5-15) for slow Level 1 charging, or a 240V outlet such as a NEMA 14-50, NEMA 6-50, or NEMA 14-30 for faster Level 2 charging. The NEMA 14-50 is the most widely recommended option for home Level 2 charging because it supports up to 40A continuous and is compatible with nearly every portable EVSE.

Can I just plug my EV into a 240V outlet?

Yes, as long as your EVSE (the charging cable or wall unit) is designed for that outlet type and your circuit is correctly sized. A NEMA 14-50 outlet on a 50A breaker supports up to 40A continuous charging, which adds roughly 30–35 miles of range per hour for most EVs.

Can you DIY a 240V outlet for EV charging?

A homeowner can legally plan the circuit route, mount conduit, and prep the location in most U.S. jurisdictions, but panel work, breaker installation, and final terminations typically require a licensed electrician and a permit. Unpermitted 240V work can void homeowner’s insurance and create problems at resale.

Can you use Romex for an EV charger install?

Romex (NM cable) is acceptable for concealed indoor runs through finished walls or studs, but THHN conductors in conduit are the standard for outdoor, exposed, or underground runs because of better heat rating and mechanical protection. When in doubt, use conduit.

Do I need a panel upgrade to add an EV charger?

Not necessarily. Run an NEC 220.82 load calculation first to confirm whether your panel has capacity for a new 50A or 60A circuit. Many homes have enough headroom to add an EV circuit without upgrading the panel, and smart chargers with load management can reduce the demand on your panel further.
