Choosing the Right EV Charger Outlet Type for Your Home

Most homeowners should install a 240V Level 2 outlet, either a NEMA 14-50 or a hardwired 40 to 48 amp charging circuit, depending on what your electrical panel can support. That single decision solves the vast majority of home charging headaches you’ll run into, and it’s the same conclusion you’ll reach after weighing speed, cost, and how your needs might change in a few years.

Here’s the reasoning behind it. A 240V Level 2 setup delivers roughly 20 to 35 miles of range per hour of charging, compared to about 4 miles per hour from a standard 120V outlet. If you drive a normal commute and charge overnight, Level 1 might technically work, but you’ll be topping off for 12 hours to replace what a Level 2 circuit handles in two or three. The NEMA 14-50 specifically hits a sweet spot: it’s a widely available outlet (the same one used for RV hookups and electric ranges), it supports a wide range of plug-in Level 2 chargers, and most licensed electricians can install one without a major panel overhaul.

Your best outlet choice really depends on your situation:

• Single-car garage with a modern 200A panel: A NEMA 14-50 outlet paired with a 40 or 48A plug-in charger gives you fast charging and flexibility if you ever swap vehicles.
• Shared parking or multi-unit dwelling: A hardwired EVSE is often required by property management or code, and it eliminates any risk of outlet theft or tampering.
• Older home with limited panel capacity: Start with a Level 1 setup or a lower-amperage Level 2 circuit (24 to 32A) until you can budget for a panel upgrade.
• Planning to keep the car and home long-term: A 48A-capable circuit on a 60A breaker gives you headroom as newer vehicles adopt larger onboard chargers.

Pro Tip: Before you buy anything, call a licensed electrician to check your panel’s main rating and available breaker space. This ten-minute conversation prevents the single most common and expensive mistake homeowners make: buying a charger their panel can’t support.

Key Takeaways

Most homeowners get the best combination of speed, cost, and future flexibility by installing a 240V Level 2 outlet or hardwired circuit sized to their panel capacity.

Table of Contents

• Ev Charger Outlet Type Selection: A Quick Reference Table
• Do Outlets And Connectors Mean The Same Thing?
• How Do You Choose The Right Outlet For Your Home?
• Plug-In Vs. Hardwired: Which Installation Makes Sense?
• What Safety Codes And Permits Should You Know About?
• What Happens During Installation, And What Drives The Cost?
• What Installers Wish Homeowners Knew Going In
• How Chargeprodirect Makes Outlet Selection Simple
• Where To Learn More
• Sources
• FAQ

Ev Charger Outlet Type Selection: A Quick Reference Table

Picking the right outlet starts with understanding what each one actually delivers.

Level 1 charging from a standard household outlet tops out around 4 miles per hour, while Level 2 outlets like the 14-50 or 6-50 deliver 20 to 35 miles per hour depending on amperage and your vehicle’s onboard charger. The Alternative Fuels Data Center is a solid resource if you want to dig deeper into how these numbers change across vehicle models.

A few outlet rules worth memorizing before you shop:

• Do use a dedicated circuit for any Level 2 installation. Sharing a circuit with other appliances is a fire risk and usually fails inspection anyway.
• Don’t use a NEMA 10-30 outlet for EV charging. It’s an older three-prong configuration that lacks a dedicated ground, and most modern EVSEs won’t safely accept it.
• Do match your outlet’s amperage to your charger’s rated draw, not the other way around. A 14-50 outlet on a 50A breaker should power a charger set no higher than 40A continuous.
• Don’t assume a bigger outlet automatically means faster charging. Your vehicle’s onboard charger caps the actual rate no matter what the outlet can theoretically deliver.

That last point trips up a lot of first-time buyers. Our detailed breakdown on NEMA 14-50 outlets and this NEMA 6-50 guide both walk through how to check compatibility before you commit to hardware.

Do Outlets And Connectors Mean The Same Thing?

No, and this is where a lot of homeowners get tangled up before they’ve even ordered a charger. The outlet in your garage is the infrastructure side, the physical NEMA plug or hardwired connection tied to your home’s electrical panel. The connector is the vehicle side, the plug that actually goes into your car, and it follows a completely different standard: J1772 for most non-Tesla EVs, or NACS (North American Charging Standard) for Tesla and an increasing number of newer vehicles adopting the same port.

Your actual charging speed is capped by whichever link in that chain is slowest. It doesn’t matter if you install a 50A NEMA 14-50 outlet if your EV’s onboard charger only accepts 32A. And it doesn’t matter how fast your charger claims to be if your vehicle’s inlet or adapter introduces a bottleneck.

The infrastructure side and the vehicle side are two separate systems that happen to meet in the middle. A home charging setup is really three components working together: the wall outlet, the EVSE (the charger itself), and the vehicle’s connector and onboard charger. Get any one of those three wrong and the whole system underperforms.

Here’s a practical example. If you drive a Tesla and want to use a standard J1772 home charger, you’ll need a Tesla to J1772 adapter, which Tesla includes with most vehicles or sells separately. If you drive a non-Tesla EV and want to use a Tesla Supercharger on the road, you’ll need the reverse adapter, and not every vehicle supports it yet. At home, most residential Level 2 chargers plug into a NEMA 14-50 outlet or are hardwired, then connect to your vehicle through a J1772 cable (or NACS, depending on the charger model).

Before you buy a charger, run through this compatibility checklist:

• Confirm your vehicle’s connector standard (J1772 or NACS).
• Look up your vehicle’s onboard charger amperage limit in the owner’s manual.
• Match the EVSE’s output amperage to that limit, not the outlet’s maximum rating.
• Verify whether the charger comes with the correct cable connector for your vehicle, or requires an adapter.
• Check the outlet type the charger requires (NEMA 14-50, NEMA 6-50, or hardwired only).

This connector standards overview is a helpful reference if you want a deeper technical breakdown of how NEMA outlet categories map to Level 1 versus Level 2 charging. And if you’re still fuzzy on how J1772 and NACS differ in practice, our guide to electric car charging ports covers the vehicle side in more depth.

How Do You Choose The Right Outlet For Your Home?

Work through these six steps in order, and you’ll walk into your electrician conversation with clear answers instead of guesses.

1. Assess your daily driving needs. If you drive under 40 miles a day, a lower-amp Level 2 circuit (24 to 32A) may be plenty. Regular long commutes or road trips call for the fastest circuit your panel can support.
2. Check your vehicle’s onboard charger limit. This number, found in your owner’s manual, tells you the maximum rate your car can actually accept, regardless of what your charger or outlet can deliver.
3. Inspect your panel capacity and available breaker slots. A licensed electrician can tell you in minutes whether you have room for a new 240V circuit or whether you’ll need a panel upgrade.
4. Confirm your desired charging speed and budget. Faster charging generally means a higher-amp circuit, thicker wiring, and a higher installation cost.
5. Decide between plug-in and hardwired. This depends on your amperage needs, local code, and whether you value flexibility over permanence.
6. Confirm permit and inspection requirements with your local authority having jurisdiction (AHJ). Skipping this step can jeopardize your homeowner’s insurance if something goes wrong later.

When your electrician visits, come prepared with specific questions:

• What’s my panel’s main rating, and how much spare capacity is available?
• Would a 14-50 outlet or a hardwired connection make more sense for my situation?
• Do I need a subpanel or service upgrade to support a 48A circuit?
• What permit and inspection steps does our local AHJ require?
• What’s the realistic cord length I’ll need to reach my parking spot?

Pro Tip: If your budget allows it, ask your electrician to install a 48A-capable circuit on a 60A breaker even if your current EV only needs 32A. Newer EVs are trending toward larger onboard chargers, and running new wiring twice costs far more than sizing it right the first time.

Level 1 charging still makes sense in a few real scenarios: if you drive under 30 miles a day, if you’re renting and can’t modify the electrical system, or if you’re testing EV ownership before committing to a permanent installation. It’s not a compromise so much as a legitimately good fit for lighter driving habits. For everyone else, our guide on choosing a home EV charger walks through how amperage, features, and cost trade off against each other in more detail.

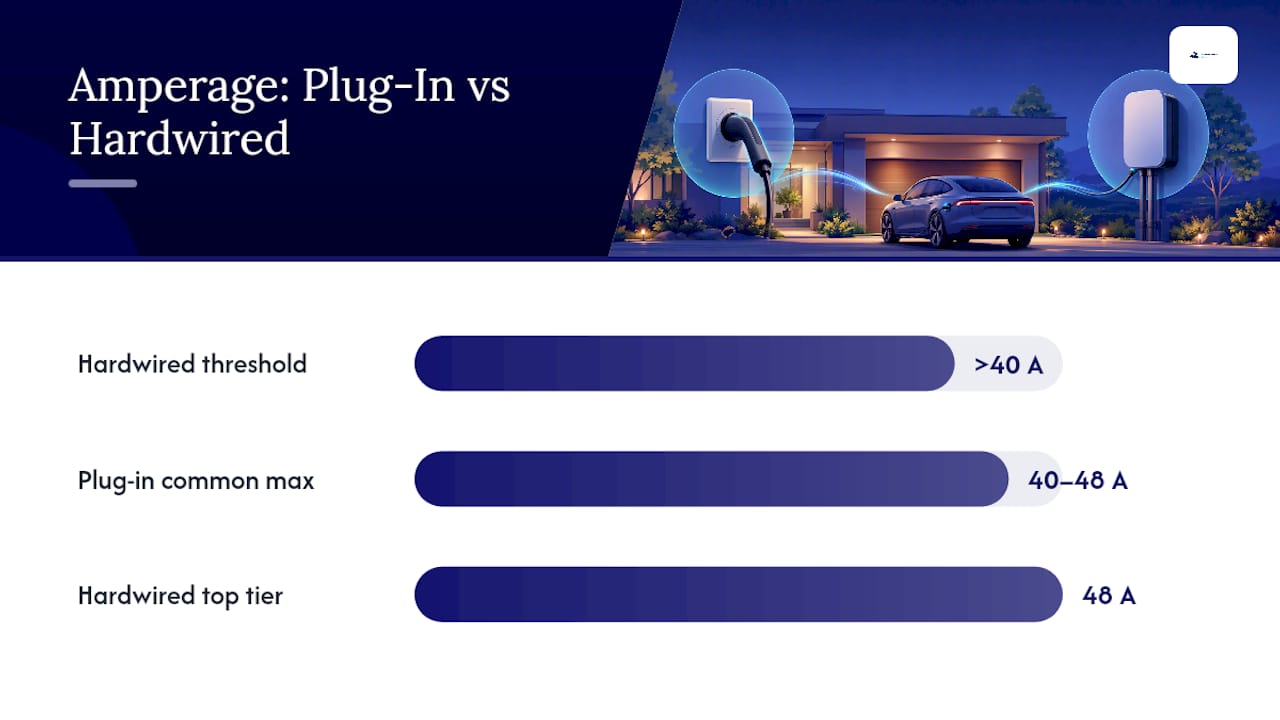

Plug-In Vs. Hardwired: Which Installation Makes Sense?

This decision comes down to flexibility versus permanence, and both options are legitimate depending on your circumstances.

A plug-in EVSE connects to a NEMA outlet (usually a 14-50 or 6-50), which means you can unplug it, take it with you if you move, or swap it out for a different unit without touching your home’s wiring again. A hardwired EVSE connects directly to your electrical panel with no outlet in between, which is more permanent but often required once you cross certain amperage thresholds or depending on local code.

Some chargers require hardwired installation by design, especially higher-amperage units. Always check the manufacturer’s installation manual and confirm the unit carries OSHA-recognized NRTL certification, which verifies the equipment meets safety and connector standards. Skipping this check is how homeowners end up buying a charger their electrician can’t legally install as planned.

A few scenarios where the choice becomes obvious:

• Renting or planning to move within a couple of years? Go plug-in. You keep the charger when you go.
• Want the fastest sustained charging speed your panel allows? Hardwired at 48A often makes more sense, since some manufacturers reserve their highest output tiers for hardwired units.
• Want the simplest possible installation with room to change your mind later? A NEMA 14-50 plug-in setup keeps your options open.

If you’re leaning plug-in, our DIY EV charging outlet options guide covers what you can reasonably handle yourself versus what should always go to a licensed electrician.

What Safety Codes And Permits Should You Know About?

The National Electrical Code (NEC) Article 625 governs EV charging equipment, and a few specific provisions come up in nearly every residential install. Conductors must be sized to handle 125% of the equipment’s rated continuous load, which is why a 40A charger typically needs wiring rated for 50A. Any EVSE drawing more than 60 amps requires a separate, visible disconnect switch. Cord length is also regulated under NEC 625.17, since a cord that’s too long can affect voltage drop and safety margins.

Here’s what a licensed installer or inspector is actually checking during a site visit:

• Your panel’s main rating and whether it has enough headroom for a new 240V circuit.
• Available breaker slots, or whether a subpanel is needed.
• Conduit routing from the panel to your charging location.
• Whether a disconnect is required (mandatory above 60A).
• Cord length limits and mounting height for the EVSE.
• Proper grounding, especially in older homes.

A few red flags should stop you cold and send you straight to a licensed electrician instead of a DIY fix: shared circuits powering multiple appliances, old or ungrounded outlets, and any NEMA 10-series outlet (the three-prong dryer style without a dedicated ground). None of these are safe starting points for EV charging, full stop.

Permitting isn’t bureaucratic friction for its own sake. It protects your homeowner’s insurance, confirms your installation meets code, and gives you a paper trail if you ever sell the house and a buyer’s inspector asks questions.

Many jurisdictions have streamlined this process. California’s Assembly Bill 1236, for example, required cities and counties to adopt expedited permitting processes specifically for EV charging installations, and similar streamlining efforts exist in other states and counties. Check with your local building department before assuming permitting will slow you down for weeks. In many areas, it’s a same-day or same-week process.

What Happens During Installation, And What Drives The Cost?

A typical home installation follows a predictable sequence, and knowing the stages ahead of time keeps you from feeling blindsided by the timeline.

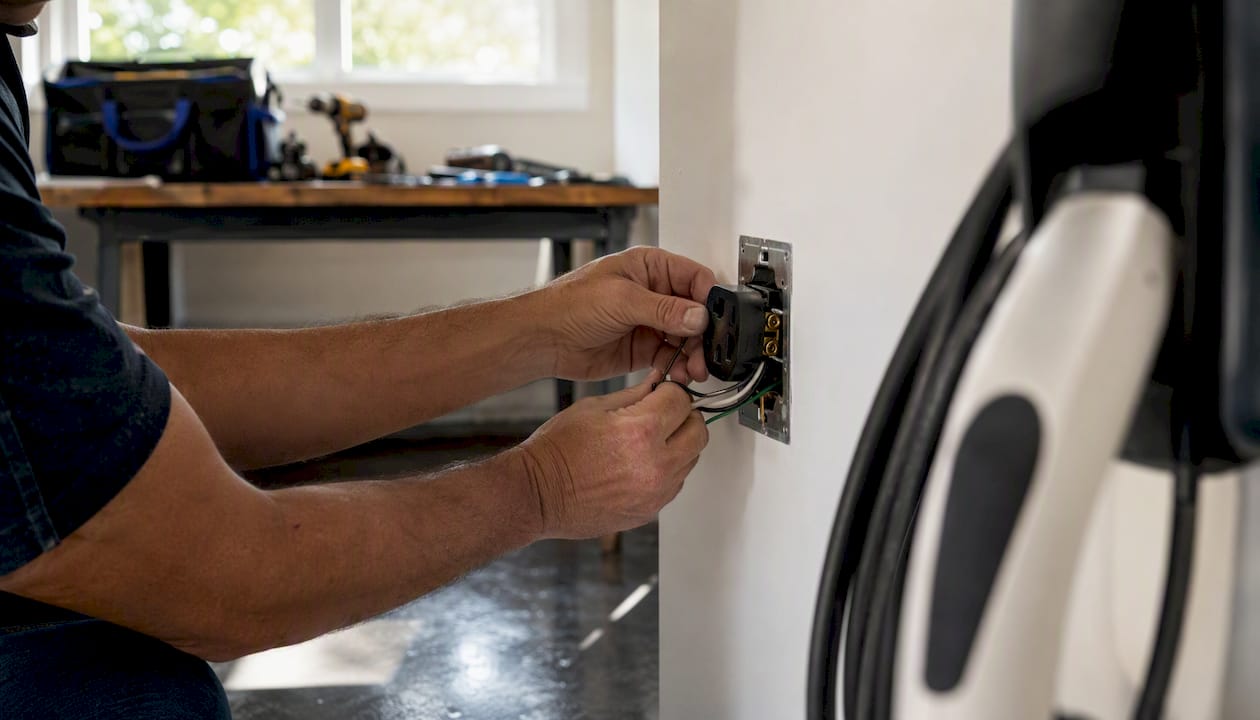

1. Site visit and electrician quote. The electrician assesses your panel, garage layout, and distance from panel to parking spot.
2. Permit submission. Your electrician (or you, in some jurisdictions) files for a permit with the local AHJ.
3. Equipment ordering. You purchase your charger and any necessary electrical components based on the confirmed specs.
4. Installation. The electrician runs conduit, wires the circuit, installs the outlet or hardwires the EVSE, and mounts the unit.
5. Inspection. A local inspector verifies the work meets code before it’s approved for use.
6. Final energization. Once approved, the circuit is turned on and your charger is ready to use.

Several factors drive cost up or down more than any other single variable:

• Panel upgrade need. If your panel is maxed out or undersized, a service upgrade can be the single biggest line item.
• Distance from panel to parking location. Longer conduit and wiring runs mean more labor and materials.
• Trenching or conduit work. Detached garages or driveways separated from the house often require underground conduit runs.
• Permitting fees. These vary by jurisdiction and are usually modest compared to labor and equipment costs.
• Utility upgrades. In rare cases, your utility may need to upgrade service to your home before a large new load is added.
• Labor rates. These vary significantly by region and by how complex the job is.

According to site selection guidance from California’s EV charging guidebook, electrical capacity and proximity to the panel are consistently among the top factors affecting both feasibility and project cost. Service upgrades, long cable runs, and adding a subpanel are the three factors most likely to push your final bill higher than initial estimates.

You can speed up your own project with a little prep work: clear physical access to your intended charging spot, know exactly where your electrical meter and panel are located, and photograph your panel’s label and main rating before your electrician’s first visit. Our panel capacity guide breaks down exactly when a service upgrade becomes necessary versus when your existing panel has enough room.

What Installers Wish Homeowners Knew Going In

The most common misconception isn’t about outlets at all. It’s the assumption that any 240V outlet will work for any charger, as long as the plug shape matches. Homeowners frequently buy a charger online based on price or brand recognition, then discover during installation that their panel can’t support the amperage, or that local code requires a hardwired unit instead of the plug-in model already sitting in the garage.

The fix is almost embarrassingly simple: confirm your panel’s rating and get a straight answer on plug-in versus hardwired before you order anything. That one phone call, made early, prevents the far more expensive scenario of returning equipment or paying for a second electrician visit.

Pro Tip: Measure the actual distance from your intended charger mounting point to where your vehicle’s charging port sits when parked. Cord length seems like a minor detail until you’re standing in the garage realizing your charger’s cable is eighteen inches too short.

Homeowners are also routinely surprised that permitting applies to their situation at all. It feels like paperwork reserved for commercial projects, but residential Level 2 installations almost always require a permit and inspection. The upside, as covered earlier, is that many jurisdictions have expedited this process specifically because EV adoption has made it a routine request rather than an unusual one.

How Chargeprodirect Makes Outlet Selection Simple

Chargeprodirect exists because most homeowners shouldn’t have to become electricians just to charge their car at home. Instead of guessing between amperage ratings and outlet types on your own, Chargeprodirect gives you personalized sizing guidance that matches your panel capacity, driving habits, and vehicle to the right charger, so you order the correct equipment the first time instead of paying for a return or a second electrician visit.

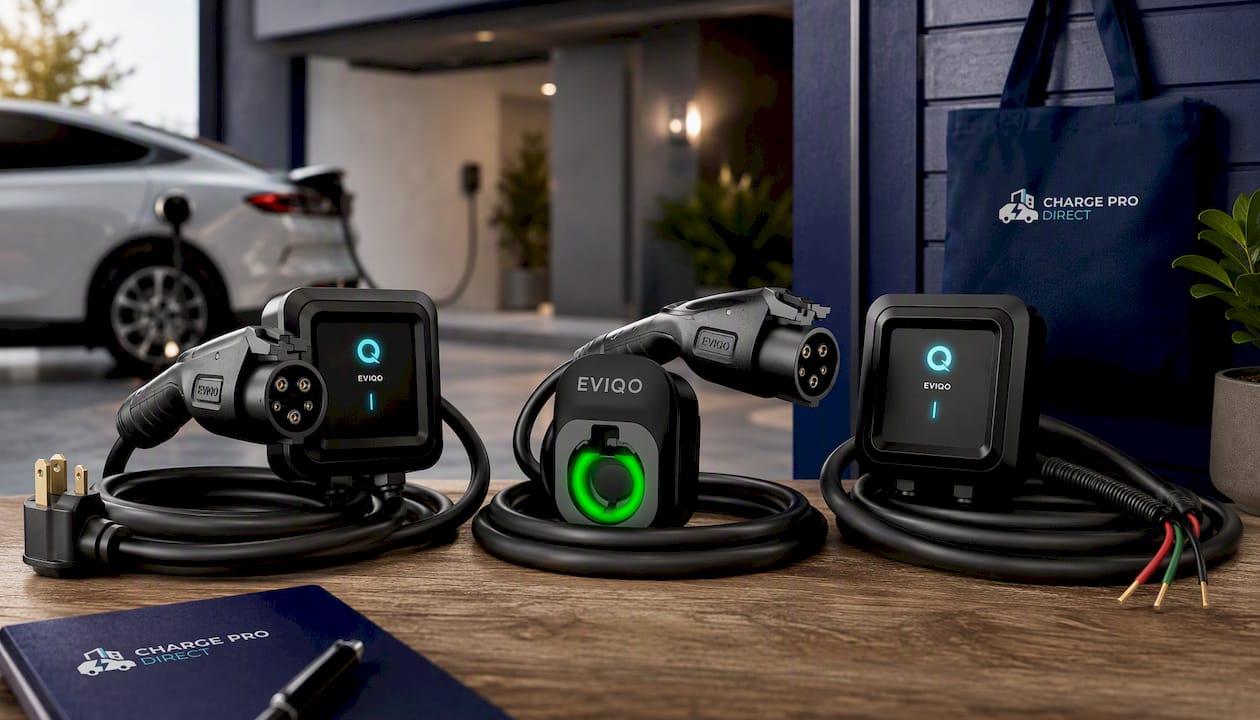

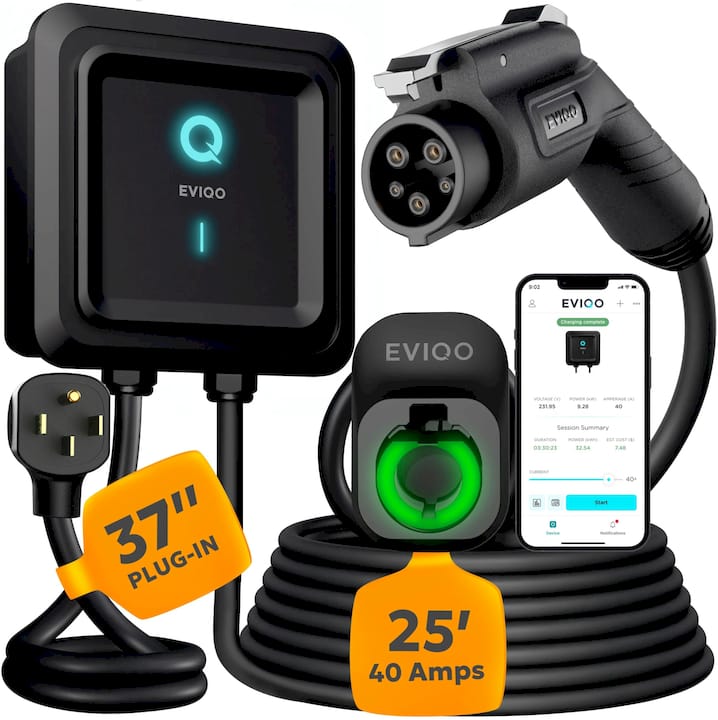

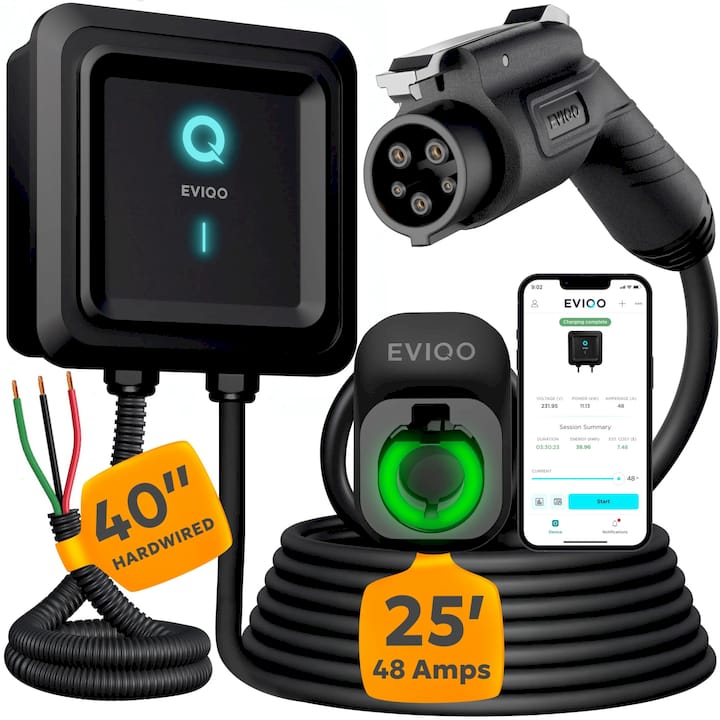

Chargeprodirect carries three Level 2 chargers built for exactly the decisions this guide covers. The EVIQO 40A plug-in charger works with a standard NEMA 14-50 outlet and suits most single-family homes with solid panel capacity. The EVIQO 48A plug-in charger delivers faster charging on the same outlet type for homeowners with newer vehicles or higher daily mileage. And the EVIQO 48A hardwired charger is built for permanent installations where you want the highest sustained charging speed available for residential use.

Every product page includes free educational resources, and Chargeprodirect can connect you with installation referrals if you need one. Use the EV charger finder to match your vehicle and panel details to the right model before you buy.

Where To Learn More

• The U.S. Department of Transportation’s EV charging speed guide breaks down Level 1 and Level 2 range-per-hour figures in plain terms.
• NEC Article 625 checklist documentation from Los Angeles County shows exactly what inspectors verify during a real installation.
• The Alternative Fuels Data Center is a dependable federal resource for general EV and charging infrastructure questions.
• NEMA’s technical standards explain the outlet configurations and ratings referenced throughout this guide.
• California’s EV charging permitting guidebook offers a detailed look at site selection and permitting factors that apply broadly beyond California.

Sources

• U.S. Department of Transportation: EV basics — charging speeds
• PART 680—National Electric Vehicle Infrastructure standards and requirements (CFR)
• Article 85 — Electric vehicle charging stations and checklist (Los Angeles County)
• Electric Vehicle Charging Station Permitting Guidebook | GoBiz (California guidebook)
• U.S. Department of Energy: Alternative Fuels Data Center — Electric vehicles

FAQ

What’s the Difference Between Type 1, Type 2, and Type 3 EV Chargers?

In the U.S. market, “Type 1” typically refers to J1772 connectors used by most non-Tesla EVs, while Tesla vehicles use NACS. “Type 2” and “Type 3” connector naming is more common in European markets and doesn’t directly apply to standard U.S. residential charging setups.

Are CCS and J1772 the Same Connector?

No. CCS (Combined Charging System) is a DC fast-charging standard used mainly at public stations, while J1772 is the standard AC connector for Level 1 and Level 2 home charging on most non-Tesla vehicles.

What Type of Outlet Do I Need for an EV Charger?

Most homeowners install a NEMA 14-50 outlet for Level 2 charging, though a NEMA 6-50 or a hardwired connection also works well depending on your charger’s amperage and your panel capacity.

What Are the Different Types of EV Charger Plugs?

In the U.S., the two connectors that matter are J1772, used by most non-Tesla EVs, and NACS, used by Tesla and an increasing number of newer vehicle models adopting the same standard.

Should I Choose a Plug-In or Hardwired EV Charger?

Choose plug-in if you value flexibility or might move soon, since the charger and outlet can be uninstalled and taken with you. Choose hardwired if you want a permanent setup or need the highest amperage a manufacturer offers, since some models require hardwiring above certain amp ratings.
