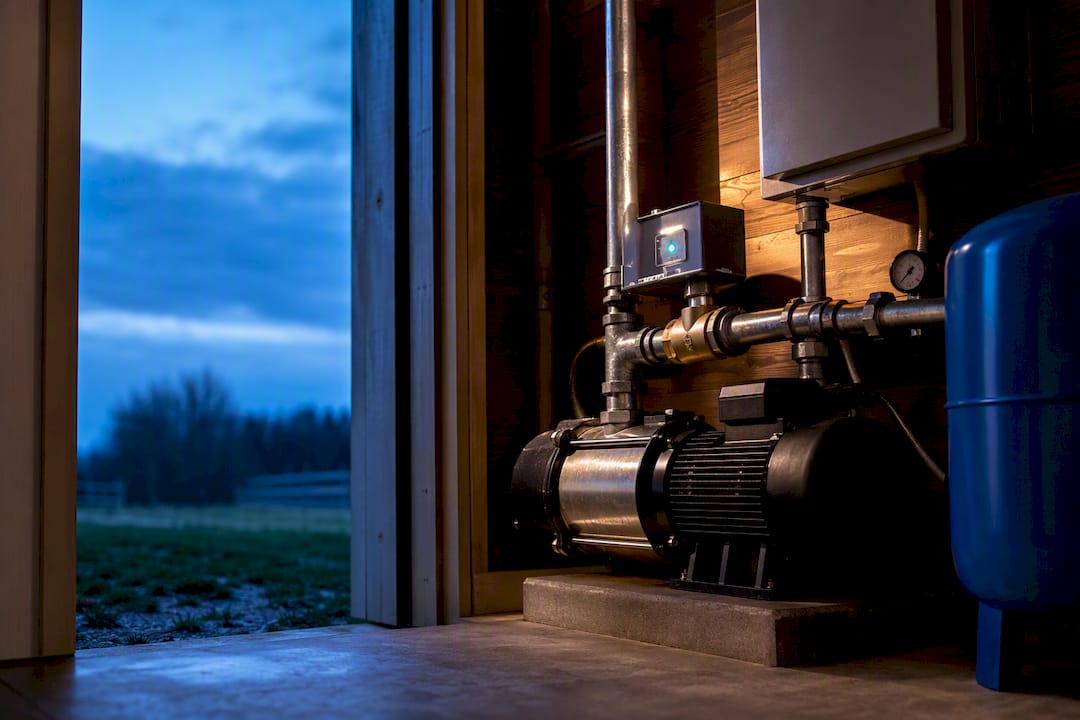

Well pump equipment in a rural well house
September 13, 2026 Charge Pro Direct

Private Well Owners: Backup Power for Well Pump That Handles 3–4x Startup Surge

Your best bet is a surge-capable battery-inverter system sized to your pump’s startup spike, not its running wattage, paired with a battery bank holding one to two days of usable kWh. Add a soft-start controller if your inverter budget is tight, and if outages regularly run past 48 hours, pair that battery system with a generator or solar recharge. Our sizing guides can help you check the math before you buy.

TL;DR:

  • Backup systems must include a surge-capable inverter sized to handle the pump’s startup surge, which can be 2 to 5 times the running wattage depending on pump size.
  • Accurate sizing requires knowing the pump’s exact LRA or employing a soft-start controller to reduce inrush current and lower inverter size requirements.
  • Battery capacity should be planned for multiple days of water supply, with 1 to 2 kWh per day being typical for household use, not based solely on total power needs.
  • Using a higher voltage battery bank (24V or 48V) reduces current and improves system efficiency, especially for 240V pumps.
  • Sizing from real surge data helps hardware match your pump, preventing inverter trips during pump startup and avoiding costly miscalculations.
Chargeprodirect
Size Your Backup Power With Confidence
Build Your System walks you through battery and backup sizing, including essential loads like a well pump.
Build Your System

Table of Contents

How Well Pumps Draw Power: Running Watts vs. Startup Surge

A well pump motor idles at one wattage but slams the system with another the instant it kicks on. That first fraction of a second, called locked-rotor surge, can hit 2 to 5 times the pump’s running wattage for 100 to 800 milliseconds. Most homeowners size backup power off the number on the nameplate and never account for that spike, which is exactly why inverters trip the moment the pump tries to start.

Here’s roughly what that looks like across common pump sizes:

  • A 1/2 HP pump often runs around 600 to 900 watts, with surge spiking to 1,800 to 3,500 watts.
  • A 3/4 HP pump commonly runs 1,000 to 1,500 watts, with a startup surge of 3,500 to 5,000 watts.
  • A 1 HP pump can run 1,500 to 2,200 watts, with surge reaching 5,000 watts or more.

An inverter rated for 2,000 continuous watts but only 3,000 peak watts will fold under a 1 HP pump’s startup, even though it looks adequately sized on paper. Manufacturers publish both peak watts and how long that peak holds, and that duration matters as much as the number itself.

Sizing an Inverter and Battery: A Step-by-Step Method

You don’t need an electrical engineering degree to size this correctly. You need the pump’s nameplate and a bit of arithmetic.

  1. Read the nameplate. Find voltage (120V or 240V) and running amps. Multiply volts by amps to get running watts.
  2. Estimate surge. Without manufacturer locked-rotor amperage (LRA) data, apply a 3x to 4x multiplier to running watts as a working surge estimate.
  3. Match the inverter. Choose one with a peak watt rating above your surge estimate and confirm how many milliseconds it holds that peak, not just the number itself.
  4. Calculate battery kWh. Most households use 1 to 2 kWh per day for well water, even with multiple daily pump cycles, because each cycle is brief. Multiply that by your target number of outage days.
  5. Pick your voltage. For 240V pumps, 24V or 48V battery banks are the more practical choice, since higher voltage reduces DC current and cabling stress compared to a 12V setup pushed to its limits.

Pro Tip: Ask for the pump’s LRA (locked-rotor amps) rating instead of guessing at a multiplier. It’s often printed on the motor itself or available from the manufacturer, and it turns your inverter selection from an estimate into a known quantity.

Chargeprodirect’s sizing guide walks through this same math with worksheets if you’d rather not do it by hand.

Soft-Start Controllers and Pressure Tank Tuning Save You Money

A soft-start controller ramps the motor up gradually instead of hitting it with full voltage at once, and it typically cuts inrush by 50 to 70 percent. That’s often the difference between needing a 5,000 watt surge-rated inverter and getting by comfortably with a 2,500 watt unit, which can shave hundreds of dollars off your system cost.

Two more cheap wins:

  • Check your pressure tank’s air pre-charge and set it about 2 psi below the cut-in pressure. This reduces short cycling, meaning fewer pump starts and fewer surge events pulling on your battery.
  • Before buying a bigger inverter, calculate whether a soft-start plus a mid-size inverter beats the cost of oversizing everything. It usually does.

Pro Tip: A soft-start controller costs a fraction of what stepping up to the next inverter size runs. Price both paths before you commit.

Battery-Only, Generator, or Hybrid: Which Setup Fits Your Situation

The right system depends on how long your outages typically last and how much you’re willing to spend upfront.

  • Battery-only wired systems run quiet, work indoors, and scale by adding battery capacity later. They’re the strongest fit for outages under two or three days and for homeowners who don’t want to store fuel or run extension cords.
  • Portable solar generators deploy fast and need no wiring changes, but their surge capacity and battery Wh cap out lower. A 2,000Wh unit might run a 500 watt pump for roughly four hours, which suits smaller pumps or brief outages, not multi-day events.
  • Fuel generators handle extended outages well and recharge on demand, but they require an automatic or manual transfer switch, routine maintenance, and stored fuel.
  • Hybrid systems, combining battery, solar, and sometimes a generator, make sense once you’re planning for outages stretching past three or four days, since solar recharge extends your runway without burning fuel continuously.

A hybrid inverter like the Growatt 10kW Hybrid Inverter paired with an LG 16H Prime Battery covers a 240V well pump’s surge needs while leaving headroom for other essential loads, which is a common configuration specialists often recommend. Community-reported setups using 48V, 100Ah banks confirm several hours of pump runtime is realistic at that scale, though installers consistently flag wiring and surge handling as where these projects go wrong.

Installation Checklist and Wiring Safety Essentials

Getting the hardware right doesn’t help if the installation is sloppy. Even a correctly sized battery bank fails if DC cabling, fuse sizing, or busbar torque is off.

  1. Install an automatic transfer switch rather than relying on manual transfer for a well pump. Manual switching means someone has to be home and awake when the power drops.
  2. Choose your DC voltage (24V or 48V for most 240V pumps) before running cable, since higher voltage cuts current and reduces voltage-drop losses over distance.
  3. Confirm DC protection is in place, including properly rated fuses (Class-T fuses are standard for high-current battery connections) and inverter input protection.
  4. Torque busbar connections to the manufacturer’s spec. Loose connections generate heat and resistance that degrade performance over time.

A few more things worth checking before you flip the system on:

  • Place batteries somewhere ventilated and temperature-stable, away from direct sun or unheated exterior spaces in cold climates.
  • LiFePO4 batteries handle deep cycling and cold better than lead-acid for this application, though lead-acid remains a lower-cost entry point.
  • Run a full commissioning test, pump starting under battery power alone, before you call the install finished.

A 200A automatic transfer switch built for whole-home backup takes the guesswork out of the transfer step and is worth building into your plan from the start.

How to size and install this right

Use your pump’s nameplate with our sizing guides to compare it against real inverter and battery specs instead of a generic estimate. Matching hardware to your actual power situation helps you avoid selecting an inverter that trips on startup.

A practical next step is to work through our sizing guide with your nameplate voltage and amps, then compare inverter and battery bank options sized to your pump’s surge and target runtime. For the wiring and transfer switch, a licensed local electrician can handle the installation.

How specialized services can help you size and install this right, overview diagram

Where Homeowners Get Well Pump Backup Wrong

Most guides on backup power for well pumps spend all their time on battery capacity and almost none on startup surge, and that’s backward. A pump that never gets enough of a jolt to start is useless no matter how many kWh sit behind it. The conventional advice, buy the biggest battery you can afford, solves the wrong problem for most private well owners, since pumping energy per day is typically modest even across multiple cycles.

Well pump startup surge versus daily energy

What actually matters, in order: confirm your inverter’s peak watt rating and how long it holds that peak, add a soft-start controller if the math favors it, then size your battery for days of water, not days of theoretical whole-home power. Homeowners who skip straight to battery shopping usually end up returning an inverter that seemed plenty big until the pump actually kicked on.

If there’s one thing worth prioritizing above all else, it’s getting real surge data, either from the motor’s LRA rating or from a soft-start conversation, before you spend a dollar on batteries.

Get Backup Power That Actually Starts Your Pump

Our sizing guides are built for the moment you’re in right now: staring at a pump nameplate, unsure whether the inverter you’re eyeing can actually handle the startup jolt. Instead of guessing at surge multipliers or ordering hardware off a generic spec sheet, you can match your pump’s real numbers to an inverter and battery combination built to handle them.

Growatt SYN 200-XH-US | 200A Automatic Transfer Switch | Whole-Home Backup

Whether that means a Growatt 10kW Hybrid Inverter paired with an LG 16H Prime Battery, or a full whole-home battery backup setup with an automatic transfer switch built in, our sizing guide helps you check the math before you check out, not after your pump trips the inverter for the third time. Start by running your pump’s nameplate numbers through our sizing guide. That single step prevents the most common and most expensive mistake homeowners make with backup power.

Sources

FAQ

How Do You Power a Well Pump During a Power Outage?

You need a backup power source, battery, generator, or hybrid, connected through a transfer switch, sized to handle your pump’s startup surge rather than just its running wattage.

Can You Get Battery Backup for a 240V Well Pump?

Yes. A 24V or 48V battery bank paired with a surge-capable inverter, like the Growatt 10kW Hybrid Inverter, handles most residential 240V pumps when sized to the motor’s actual startup surge.

How Much Power Do You Need to Run a Well Pump?

Running wattage typically falls between 600 and 2,200 watts depending on horsepower, but the inverter needs to handle a startup surge of 2 to 5 times that amount for under a second.

Are There Battery Backup Systems Made Specifically for Well Pumps?

Battery backup systems aren’t pump-specific, but our sizing guides show how to match general-purpose inverters and battery banks, such as the LG 16H Prime Battery, to your pump’s exact surge and runtime requirements.
