Commercial Battery Backup Charging Explained for Businesses
Commercial battery backup charging is defined as the process of storing electrical energy in a battery energy storage system (BESS) so a business can draw on that stored power during outages or high-cost grid periods. The industry term is BESS, and it covers far more than emergency power. A well-designed system charges from the grid during low-cost hours or from solar panels, then discharges strategically to cut demand charges and keep critical equipment running without interruption. Businesses that understand how backup power works gain a real edge in energy cost control and operational reliability.
How does commercial battery backup charging work?
Commercial BESS charge from two main sources: the utility grid and on-site solar photovoltaic (PV) arrays. Grid charging happens during off-peak hours when electricity rates are lowest. Solar charging captures surplus generation that would otherwise be exported to the grid at low compensation rates.
Discharging follows a different logic. The system releases stored energy when site demand spikes above a preset threshold or when grid power fails. This two-direction flow is managed continuously by a power conversion system (PCS), which converts DC power stored in the battery into AC power your building uses.

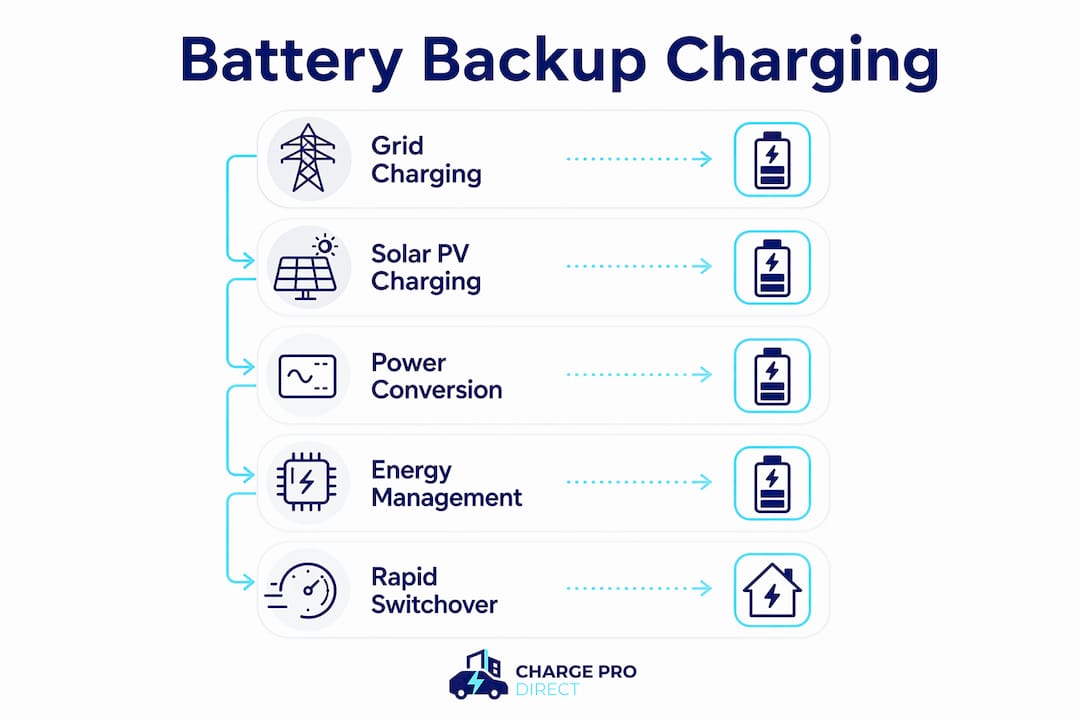

Here is how a typical charge and discharge cycle plays out in a commercial facility:
- Grid charging: The BESS draws power during overnight low-rate windows, filling the battery to a programmed state-of-charge ceiling.
- Solar surplus capture: Excess PV generation charges the battery instead of being wasted or sold back at low rates, increasing solar self-consumption.
- Peak shaving discharge: When site load climbs above the threshold, the battery discharges to keep demand below the utility’s billing peak. Batteries shift load by charging in low-cost periods and discharging during peak hours, directly reducing monthly demand charges.
- Outage backup discharge: If the grid fails, the system switches to island mode and powers critical loads from stored energy until grid power returns.
- Recharge after outage: Once the grid restores, the BESS recharges to its programmed backup reserve level before resuming peak shaving.
The speed of that outage response matters more than most buyers realize. Advanced hybrid inverter systems switch to islanded backup mode within about 20 milliseconds. That is fast enough to protect sensitive equipment like servers, medical devices, and manufacturing controls without any perceptible interruption.

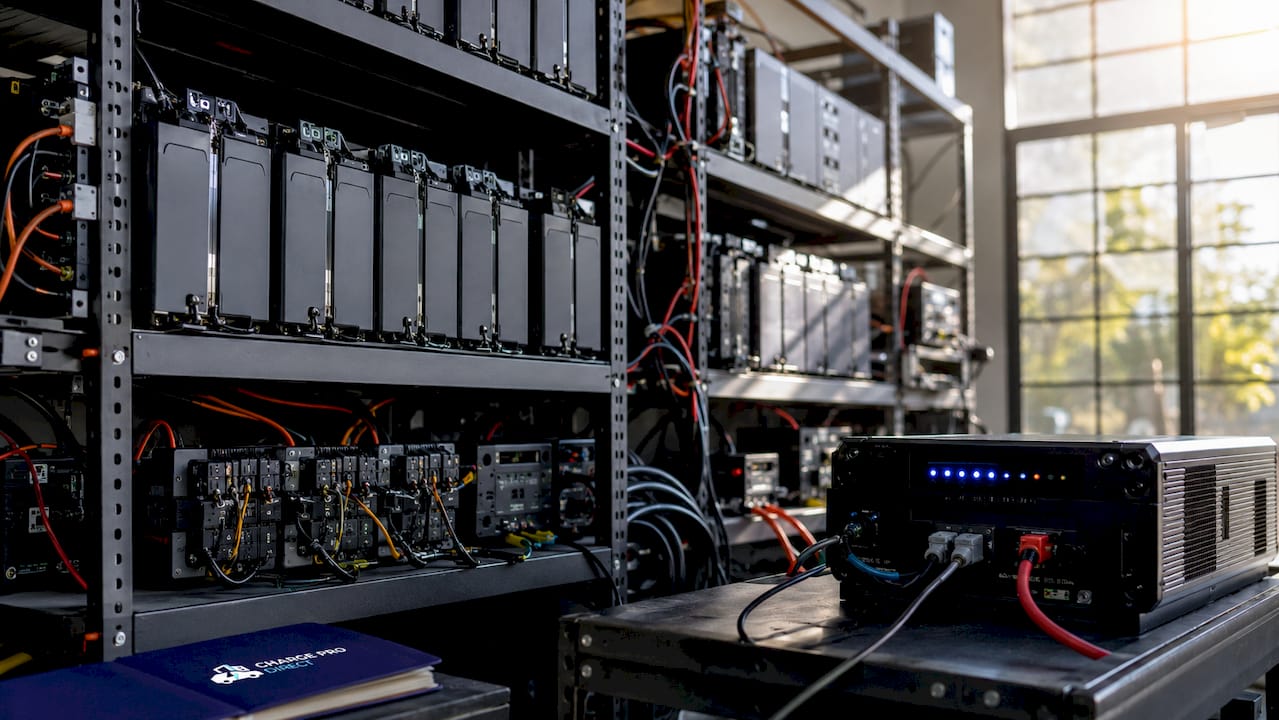

What components make up a commercial battery backup system?
Commercial battery storage systems are integrated solutions that include battery racks, inverters, transformers, energy management software, and site-specific interconnection design. Each component plays a distinct role, and a weak link in any one of them limits the whole system.
Battery racks and chemistry
Battery capacity is measured in kilowatt-hours (kWh), which tells you how much energy is stored. Power output is measured in kilowatts (kW), which tells you how fast that energy can be delivered. You need both numbers. A battery with high kWh but low kW cannot respond fast enough to shave a sharp demand spike.
Power conversion systems and hybrid inverters
The PCS converts DC battery power to AC building power and back again during charging. Hybrid inverters combine the PCS and solar inverter into one unit, which reduces cost and simplifies wiring. For backup operation, the inverter must support EPS (Emergency Power Supply) mode. Anti-islanding regulations cause grid-tied inverters to shut down during outages unless they are equipped with EPS hardware and proper wiring to enable safe backup operation.
Energy management systems
The energy management system (EMS) is the software brain of the operation. It reads utility tariff schedules, monitors state-of-charge, and decides when to charge and when to discharge. EMS programs must reserve battery charge for backup to preserve energy after daily peak shaving use. Without that reserve floor, a busy peak shaving day could drain the battery right before a grid outage.
Pro Tip: Ask your installer to show you the EMS dispatch logic in writing before signing off on any system. If the software cannot enforce a minimum backup reserve, the system will not perform reliably during an actual outage.
Wiring and safety requirements
Neutral-earth bonding at the inverter’s island output is mandatory for safe backup operation. Wiring errors are the most frequent cause of battery backup failure during real outages. A correctly wired system activates its neutral-earth bond automatically when it enters island mode, preventing ground fault trips that would otherwise kill power to your critical loads.
What are the benefits of commercial battery backup beyond outage protection?
Battery backup systems deliver daily financial value, not just emergency insurance. Energy costs can comprise 30–50% demand charges on a commercial utility bill. Batteries cut those charges through smart dispatch. Here are the core benefits in order of financial impact:
- Demand charge reduction: The system discharges when site load surpasses the preset threshold, keeping your billed peak demand lower. This single benefit often pays for the system faster than any other use case.
- Load shifting: Charging during cheap off-peak hours and discharging during expensive peak hours reduces your average cost per kilowatt-hour across the billing period.
- Solar optimization: Storing excess PV generation instead of exporting it at low rates increases the financial return on your solar investment. Businesses with solar and storage together consistently outperform those with solar alone.
- Operational resilience: Critical loads stay powered during grid failures without waiting for a diesel generator to start. The 20-millisecond switchover time protects equipment that cannot tolerate even a brief interruption.
- Utility incentive eligibility: Many utilities offer demand response programs that pay businesses to discharge their batteries during grid stress events. A properly configured BESS qualifies for these payments, adding another revenue stream.
Businesses that benefit most from integrated battery backup solutions include data centers, cold storage facilities, manufacturing plants, medical offices, and multi-tenant commercial properties. Each of these has high demand charges, sensitive equipment, or both.
How do you size and design a commercial battery backup system?
Sizing a commercial BESS is where most projects go wrong. The two most common errors are using monthly utility bills instead of granular load data, and confusing battery capacity with usable energy.
Sizing commercial batteries requires analyzing 15-minute interval load data to set peak shaving thresholds corresponding to 100–300 hours per year above the threshold. Monthly bills show your total consumption but hide the sharp spikes that drive demand charges. Fifteen-minute interval data, available from your utility, reveals exactly when and how high those spikes reach.
Separating power and energy requirements
Businesses frequently confuse battery capacity (kWh) with power (kW) requirements. Sizing must consider peak power and energy duration separately. For backup, the power requirement is fixed by the load you need to support. The energy requirement grows with every hour you need to run on battery alone. A 100 kW critical load running for four hours needs 400 kWh of usable energy, not just 400 kWh of nameplate capacity.
Defining critical loads and autonomy
Not every circuit in your building needs battery backup. Separating critical loads (servers, refrigeration, safety lighting) from non-critical loads (decorative lighting, non-essential HVAC zones) reduces the battery size you need and lowers cost. Define your minimum acceptable autonomy duration before sizing begins. Two hours covers most short outages. Eight or more hours is a resilience-focused design.
Pro Tip: Program your EMS to hold a minimum state-of-charge reserve at all times. If your system does peak shaving during the day, set a floor of 20–30% reserved exclusively for backup. This prevents the battery from being fully depleted before an outage hits.
The design focus differs sharply between peak shaving and resilience use cases. Peak shaving systems prioritize rapid response and dispatch logic. Resilience systems require critical load segmentation and transfer switching. Blending both objectives needs a specialized EMS design that handles each function without compromising the other.
Key Takeaways
Commercial battery backup charging delivers reliable power continuity and measurable cost savings when systems are sized with granular load data, programmed with proper EMS dispatch logic, and wired correctly for island mode operation.
| Point | Details |
|---|---|
| Switchover speed matters | Advanced BESS switch to backup mode in about 20 milliseconds, protecting sensitive equipment instantly. |
| Size with interval data | Use 15-minute load data, not monthly bills, to set accurate peak shaving thresholds and backup capacity. |
| Separate kW from kWh | Power (kW) and energy (kWh) are different requirements; size each independently for backup and peak shaving. |
| EMS reserve floors are critical | Program a minimum state-of-charge reserve so peak shaving never drains your backup capacity before an outage. |
| Demand charges are the top financial target | Demand charges can represent 30–50% of a commercial bill; peak shaving is often the fastest payback use case. |
What I’ve learned from watching businesses get battery backup wrong
Most businesses I see approach battery storage as a one-size-fits-all purchase. They pick a system based on kWh capacity alone, skip the EMS programming details, and then wonder why their demand charges barely moved or why the battery was empty during the one outage that mattered.
The hardware is rarely the problem. The dispatch logic is. A battery with mediocre specs and excellent EMS programming will outperform a premium battery with a generic dispatch profile every single time. The EMS decides when to charge, when to discharge, and how much to hold in reserve. That software is where the real value lives.
The other mistake I see constantly is treating peak shaving and resilience as interchangeable goals. They are not. A system optimized purely for peak shaving will drain itself daily and leave you exposed during an outage. A system sized purely for resilience will sit mostly idle and never pay back its cost through demand charge savings. The businesses that get the best results define both objectives upfront and demand an EMS that handles both without compromise.
The industry is moving fast toward hybrid systems that pair solar, storage, and EV charging into one coordinated platform. Businesses that install battery backup now and leave room for solar integration are positioning themselves well for that shift. The ones that install a standalone battery with no expansion path will be replacing equipment in five years instead of adding to it.
Clarissa
Battery backup and EV charging solutions for your business
Chargeprodirect offers a full range of commercial energy products designed to work together, from battery backup systems to high-power EV chargers built for business use.
If your facility runs a fleet or hosts employee and customer charging, pairing your battery backup with a commercial-grade Level 2 charger is the logical next step. The EVIQO 48A hardwired EV charger delivers up to 50A at 240V and works with all J1772-compatible non-Tesla vehicles, making it a practical fit for most commercial fleets. Chargeprodirect’s team helps you match the right charger and backup system to your actual load profile, so you avoid the sizing errors that cost businesses money before installation even begins. Free shipping and flexible payment options are available on qualifying orders.
FAQ
What is commercial battery backup charging?
Commercial battery backup charging is the process of storing electrical energy in a BESS so a business can use that stored power during outages or high-demand periods. It covers both emergency backup and daily energy cost management through peak shaving and load shifting.
How fast does a commercial battery switch to backup power?
Advanced hybrid inverter systems switch to islanded backup mode in approximately 20 milliseconds. That speed is fast enough to protect sensitive commercial equipment without any noticeable interruption to operations.
What data do I need to size a commercial battery system?
You need 15-minute interval load data from your utility, not just monthly bills. This granular data reveals demand spikes and lets engineers set accurate peak shaving thresholds and backup energy requirements.
Can a commercial battery system handle both peak shaving and outage backup?
Yes, but only if the EMS is programmed to reserve a minimum state-of-charge floor for backup use. Without that reserve, daily peak shaving can drain the battery before an outage occurs.
Why do some solar batteries fail during power outages?
Grid-tied inverters shut down during outages due to anti-islanding regulations unless they are equipped with EPS mode hardware and correct neutral-earth bond wiring. A battery without these features will not supply backup power even if it is fully charged.
