DIY Home Battery Backup Installation: A Practical Guide
A home battery backup system is a rechargeable energy storage unit that keeps your critical circuits running when the grid goes down. DIY home battery backup installation is a fully achievable project for homeowners with basic electrical knowledge, and the savings are significant. DIY rack LiFePO4 cells cost $200–$400 per kWh compared to $800–$1,200 per kWh for commercial installed systems, cutting hardware costs by 50–75%. The key is knowing exactly where your work ends and where a licensed electrician must take over. Get that boundary right, and you build a legal, safe, and genuinely useful home energy storage solution.
What prerequisites and planning steps are essential before DIY home battery backup installation?
Preparation is the single biggest factor separating successful installations from expensive mistakes. Skipping this phase causes most of the problems homeowners run into later.
Perform a detailed load audit first
A load audit maps every circuit in your home and measures how much power each one draws. Load audits must map all critical circuits and their consumption over time to size battery capacity accurately. Your goal is to identify which circuits are truly essential during an outage: refrigerator, medical equipment, lighting, internet router, and a few outlets. Non-essential loads like electric dryers, hot tubs, and central air conditioning will drain a battery bank in hours. Many installation failures stem from inadequate load analysis that causes systems to power non-essential circuits and deplete batteries prematurely.
Understand battery sizing basics
Once you know your critical load in watts, calculate your daily energy need in kilowatt-hours (kWh). Multiply that number by the number of autonomy days you want (typically 1–3 days) and divide by your battery’s usable depth of discharge (80–90% for LiFePO4). That gives you your minimum battery bank size. For example, a 2 kWh daily critical load with 2 autonomy days and 90% depth of discharge requires roughly 4.4 kWh of battery capacity. Use the whole-home battery sizing guide from Chargeprodirect to run these numbers accurately before buying anything.
Research permits and utility requirements
Every jurisdiction handles permits differently, and skipping this step can void your homeowner’s insurance. Contact your local building department and your utility’s interconnection department before purchasing components. Utilities vary significantly in allowing homeowner self-installation and may require licensed contractors to maintain warranties and insurance coverage. Getting clarity early prevents costly rework after installation.
Pro Tip: Call your utility’s interconnection department before you buy a single component. Ask specifically whether homeowner self-installation is permitted and what UL listing requirements apply. This one call can save you weeks of delays.
Tool and material checklist
| Item | Purpose |
|---|---|
| Multimeter | Verify voltage and polarity before connections |
| Torque wrench | Tighten battery terminal bolts to spec |
| Class T fuses (20,000A rated) | Protect battery bank from fault currents |
| Wire stripper and crimper | Prepare battery and inverter cables |
| UL 9540-listed battery and inverter | Meet code requirements for energy storage |
| Disconnect switch | Safely isolate battery bank for service |
| Conduit and connectors | Route DC wiring safely through walls or cabinets |
How do you select and size components for a DIY home battery backup system?
Component selection determines how well your system performs and how long it lasts. Choosing mismatched parts is the second most common cause of installation problems.
Battery chemistry: why LiFePO4 wins for home use
Lithium iron phosphate (LiFePO4) batteries are the standard choice for residential energy storage. They offer a longer cycle life, better thermal stability, and a higher usable depth of discharge than lead-acid alternatives. Server-rack format LiFePO4 batteries are especially popular for DIY builds because they stack neatly in standard 19-inch racks, include built-in battery management systems (BMS), and are available in modular 5 kWh or 16 kWh units. The MidNite Power MNPowerflo5 rack-mount battery is one example of a 48V, 5.12 kWh unit designed specifically for this type of build.
Inverter types explained
| Inverter type | Best use case | Key consideration |
|---|---|---|
| Off-grid inverter | No grid connection, full independence | Cannot export power to grid |
| AC-coupled inverter | Adding storage to existing solar system | Works with existing solar inverter |
| Hybrid (DC-coupled) inverter | New solar plus storage builds | Single device manages solar, battery, and grid |
A hybrid inverter is the most flexible option for new installations. It manages solar charging, battery charging from the grid, and load output from a single unit. AC-coupled setups work well when you already have a solar system and want to add storage without replacing your existing inverter.
Critical accessories you cannot skip
DIY battery assembly requires advanced competence in DC wiring, BMS programming, grounding, and fuse selection. These are the accessories that make the difference between a safe system and a fire hazard:
- Class T fuses: Rated for 20,000A interrupting capacity, placed directly at battery terminals
- Disconnect switch: Allows you to isolate the battery bank safely for maintenance
- BMS programming: Set charge and discharge limits to match your inverter’s voltage window
- Properly sized DC cables: Undersized cables overheat under load; use a wire gauge calculator for your amperage
Pro Tip: Never size your battery bank based on total home consumption. Size it for critical loads only. A smaller, correctly sized bank outperforms a large, poorly planned one every time.

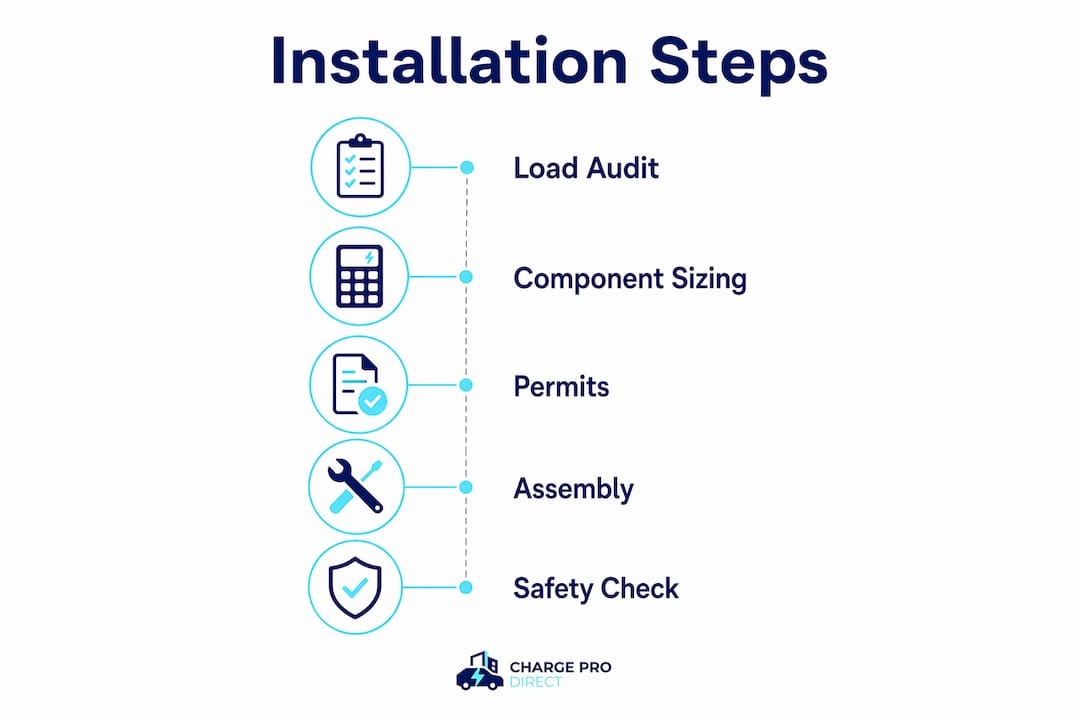

What are the step-by-step instructions for installing and wiring your DIY home battery backup?
DIY battery assembly typically requires 8–20 hours of labor depending on your experience level. Follow this sequence to stay safe and avoid rework.
Installation steps
- Mount the battery rack or cabinet. Place it in a dry, ventilated space with at least 3 inches of clearance on all sides. Garages and utility rooms work well. Avoid direct sunlight and areas prone to flooding.
- Install batteries in the rack. Slide each unit into the rack and secure it. Do not connect any cables yet.
- Install the Class T fuse holder at the battery positive terminal. Class T fuses rated for 20,000A are mandatory at battery bank terminals to safely interrupt fault currents from lithium packs.
- Run DC cables from the battery bank to the inverter. Use the correct wire gauge for your system’s amperage. Keep positive and negative cables bundled together to reduce inductance.
- Connect the charge controller (if DC-coupled). Wire solar panels to the charge controller, then the charge controller to the battery bank. Verify polarity at every connection with a multimeter before tightening terminals.
- Connect the inverter to the battery bank. Follow the inverter manufacturer’s wiring diagram exactly. Torque all terminal bolts to the specified value.
- Set up the critical load subpanel. This is a separate breaker panel that receives power from your inverter’s output. Critical load subpanel implementation requires physically relocating circuits from your main panel to the critical load panel. This step must be performed by a licensed electrician.
- Test the system in off-grid mode first. Power on the inverter and verify that critical loads receive power from the battery. Check voltage, current, and BMS status before connecting to the grid.
Safety warning: All AC-side wiring, including connections to your main panel, the critical load subpanel feed, and any grid tie-in, requires a licensed electrician. Performing this work yourself without a license violates the National Electrical Code (NEC) and voids most equipment warranties.
Common troubleshooting scenarios
| Problem | Likely cause | Fix |
|---|---|---|
| Inverter won’t power on | Low battery voltage or BMS fault | Check BMS display; charge battery to minimum voltage |
| Battery drains faster than expected | Non-critical loads on backup circuit | Audit critical load panel; remove non-essential circuits |
| Fuse blows on startup | Inverter inrush current too high | Use a slow-blow pre-charge resistor during startup |
| BMS shuts down under load | Cell imbalance or temperature fault | Balance cells; check ventilation around battery rack |
Pro Tip: Always verify polarity with a multimeter before making any battery connection. A reversed connection destroys inverters and BMS units instantly, and most warranties do not cover polarity errors.
How to ensure safety, code compliance, and successful utility interconnection?
Code compliance is not optional. A non-compliant installation creates insurance liability, can result in fines, and puts your home at risk.
What the permit process looks like
Most jurisdictions require a building permit for any energy storage installation. You submit a single-line electrical diagram, a site plan, and equipment spec sheets. The building department reviews the application and may require a field inspection after installation. Plan for this process to take 2–4 weeks before you can begin work.
The licensed electrician’s role
Electrical codes allow homeowners to perform DC-side wiring and battery assembly but require licensed electricians for AC-side grid interconnection and panel modifications. Your electrician handles the main panel connection, the critical load subpanel feed, and any rapid shutdown wiring required by NEC Article 706. This is not a cost-cutting opportunity. Hiring a licensed electrician for the AC side protects your warranty, your insurance, and your home.
Utility interconnection timeline
Utility interconnection approval timelines add 2–8 weeks after installation before your system can operate in grid-tied mode. Submit your interconnection application as early as possible, ideally before installation begins. Some utilities require a utility-grade disconnect visible from outside the home.
Key compliance checklist:
- All equipment carries UL 9540 listing for energy storage systems
- Rapid shutdown device installed per NEC Article 690 (if solar is included)
- Grounding electrode conductor sized per NEC Article 250
- Permit posted at job site during inspection
- Interconnection agreement signed before grid tie-in
Insurance note: Homeowner’s insurance policies often exclude damage caused by unpermitted electrical work. A single inspection failure can result in a requirement to remove and reinstall the entire system.
Key takeaways
A successful DIY home battery backup installation depends on accurate load analysis, correct component selection, and a clear division of labor between homeowner DC work and licensed electrician AC work.
| Point | Details |
|---|---|
| Load audit first | Map only critical circuits before sizing your battery bank to avoid premature depletion. |
| LiFePO4 is the right chemistry | Server-rack LiFePO4 batteries offer the best cycle life, safety, and modularity for home DIY builds. |
| Class T fuses are mandatory | Install 20,000A-rated Class T fuses at battery terminals to safely handle lithium fault currents. |
| AC side needs a licensed electrician | Panel modifications and grid tie-in require NEC-compliant work by a licensed professional. |
| Start utility contact early | Interconnection approvals take 2–8 weeks, so apply before installation begins to avoid delays. |
What I’ve learned from watching DIY battery builds go right and wrong
The homeowners who get the best results from a DIY battery backup build are not necessarily the most technically skilled. They are the ones who spend the most time on planning before touching a single wire. I have seen beautifully assembled battery racks fail within a week because the owner never ran a real load audit and connected the whole house to a 10 kWh bank. The system drained overnight on the first outage.
The cost savings from building your own system are real. Going from $800–$1,200 per kWh installed down to $200–$400 per kWh for cells is a meaningful difference on a 20 kWh system. But those savings disappear fast if you buy the wrong inverter, undersize your fusing, or have to pay an electrician to redo work that failed inspection.
My honest recommendation: do the DC side yourself if you are comfortable with it, but budget for a licensed electrician on the AC side from the start. Treating that cost as optional is the most expensive mistake I see DIYers make. The permit and inspection process also protects you. A stamped permit means your insurance company cannot walk away from a claim if something goes wrong years later.
Start small if you are new to this. A single 5 kWh server-rack battery paired with a quality hybrid inverter covers most critical loads for a typical home. You can add battery modules as your budget allows. Modular systems built around 48V rack batteries scale cleanly without rewiring the whole system. That flexibility is one of the biggest practical advantages of the DIY approach over a fixed commercial unit.
Clarissa
Ready to build your home battery backup system?
Chargeprodirect carries the components DIY builders actually need: modular server-rack LiFePO4 batteries, hybrid inverters, and complete solar kits sized for real homes. Every product listing includes detailed specs so you can match components to your load audit results before you buy.
If you want a pre-configured starting point, the Sol-Ark 15K whole-home bundle pairs a 15K hybrid inverter with 32 kWh of battery storage, covering most whole-home backup needs out of the box. For modular builds, browse the full home battery backup collection to find rack batteries, inverters, and accessories with free shipping and flexible payment options. Chargeprodirect also offers personalized guidance to help you match the right system to your specific load profile before you commit to a purchase.
FAQ
How much does a DIY home battery backup system cost?
DIY rack LiFePO4 cells cost $200–$400 per kWh, compared to $800–$1,200 per kWh for commercially installed systems. A complete 10–20 kWh DIY build typically costs significantly less than a commercial installation ranging from $10,000 to $25,000.
Can I install a home battery backup system myself?
You can perform DC-side work including battery assembly, BMS programming, and charge controller wiring. AC-side connections to your main panel and grid tie-in require a licensed electrician under NEC guidelines.
Do I need a permit for a home battery backup installation?
Yes. Most jurisdictions require a building permit and electrical inspection for any energy storage installation. Skipping permits can void your homeowner’s insurance and create liability if damage occurs.
How long does a DIY battery backup installation take?
Battery assembly and DC wiring typically take 8–20 hours depending on experience. Utility interconnection approval adds 2–8 weeks after installation before grid-tied operation begins.
What battery type is best for a DIY home battery backup?
LiFePO4 (lithium iron phosphate) is the best choice for home DIY builds. It offers a longer cycle life, better thermal safety, and a higher usable depth of discharge than lead-acid or other lithium chemistries.
