Stop Guessing: EV Charger GFCI and 125% Wiring for U.S. Homeowners

Yes, in most cases: NEC 625.54 requires GFCI protection for any receptacle outlet used for EV charging, and that requirement stacks on top of NEC 210.8. Hardwired chargers usually skip the receptacle rule because they rely on internal ground-fault protection instead, but local code adoption and your inspector still have the final word. If you’re choosing between a plug-in and a hardwired setup, this distinction changes your wiring plan.

TL;DR:

• GFCI protection is mandatory for all receptacle outlets used for EV charging, regardless of location, and applies even if the outlet wouldn’t normally require GFCI under NEC 210.8.
• Using a plug-in charger with a receptacle triggers the GFCI requirement, while hardwired chargers typically rely on internal protection, affecting wiring and future flexibility.
• A 40 amp charger generally needs a breaker rated for at least 50 amps, and circuit conductors must be sized at 125% of the charger’s continuous amperage, with local codes possibly requiring adjustments.
• The choice of GFCI breaker matters; Type B or Type EV breakers are best matched for EVSE to avoid nuisance trips caused by differences in leakage detection sensitivity.
• Hardwired installs often support higher continuous output, have fewer trip-prone components, and are recommended for long-term reliability, especially if flexibility or portability is not a priority.

Table of Contents

• What Does the NEC Actually Require for EV Charger GFCI Protection?
• Plug-In vs. Hardwired: Which One Changes Your GFCI Requirement?
• Which GFCI Breaker Type Actually Works With an EV Charger?
• What Wire and Breaker Sizes Do Common Level 2 Installs Actually Need?
• Why Does My EV Charger Keep Tripping the GFCI?
• What Do Inspectors Check for GFCI Compliance?
• Installer-Ready Checklist and Where Chargeprodirect Fits
• How Nuisance Trips Happen and Why CCID Complicates the Picture
• How Do You Keep a GFCI Working Reliably for Years?
• Why We Usually Point Homeowners Toward Hardwired Installs
• Which EVIQO Charger Matches Your Installation Plan?
• Sources
• FAQ

What Does the NEC Actually Require for EV Charger GFCI Protection?

The National Electrical Code doesn’t leave much room for guesswork here. NEC 625.54 states that receptacle outlets installed for the connection of electric vehicle charging equipment require GFCI protection for personnel, and this applies regardless of location, whether the outlet sits in a garage, on an exterior wall, or in a covered carport.

That rule is written to work “in addition to” the requirements in NEC 210.8, which already mandates GFCI protection for outdoor receptacles, garage receptacles, and other wet or damp locations. In plain terms: even if your EV outlet wouldn’t normally trigger 210.8 protection, 625.54 pulls it in any way because of what the receptacle is used for.

Circuit sizing follows a separate but related rule. EV charging counts as a continuous load, meaning the breaker and wiring have to be sized at 125% of the charger’s rated draw. A 40 amp charger needs a circuit rated for at least 50 amps. This isn’t optional headroom. It’s baked into how the NEC defines continuous-load circuits.

Here’s what that means in practice for most homeowners:

• Any plug-in EV outlet almost certainly needs GFCI protection, no exceptions for indoor placement.
• Hardwired chargers are evaluated differently since there’s no receptacle to protect.
• Breaker size must always be at least 125% of the charger’s continuous amperage rating.
• Local jurisdictions can adopt older or newer NEC cycles, which shifts exactly how these rules get enforced.

Knowing which article governs your setup saves you a failed inspection and a second visit from your electrician.

Plug-In vs. Hardwired: Which One Changes Your GFCI Requirement?

Your choice between a NEMA 14-50 plug and a hardwired connection isn’t just about convenience. It’s the single biggest factor in whether GFCI protection becomes a code requirement or a non-issue.

Plug-in EV charging equipment connects through a receptacle, and that receptacle is exactly what NEC 625.54 targets. The moment you install a NEMA 14-50 outlet for EV charging, you’ve triggered the GFCI requirement, full stop. Hardwired EVSE (electric vehicle supply equipment) skips the receptacle entirely. Many hardwired units include their own internal ground-fault protection, often called CCID (Charge Circuit Interrupting Device), which handles the ground-fault detection job internally rather than relying on an external device.

That difference has real consequences of just code compliance:

1. Portability. A plug-in charger can move with you or get unplugged for another 240V appliance. A hardwired unit stays put.
2. Maximum usable amperage. Hardwired installs commonly support higher continuous output since you’re not limited by receptacle and plug ratings.
3. Nuisance-trip risk. Plug-in setups that pair an external GFCI with a charger’s internal CCID face a higher chance of unwanted trips, since both devices are watching for ground faults at different sensitivity levels.
4. Long-term reliability. Fewer devices in the ground-fault detection chain generally means fewer points of failure over years of daily charging.

If you rent, move frequently, or want to take your charger with you, plug-in makes sense despite the tradeoffs. If you own your home and plan to charge every night for the next decade, hardwiring often pays off in fewer service calls.

Which GFCI Breaker Type Actually Works With an EV Charger?

Not every GFCI device handles EV charging the same way, and picking the wrong one is the fastest route to a charger that trips every other night.

Type A is the standard residential GFCI you’ll find protecting a bathroom or kitchen outlet. It trips on AC ground-fault current, typically in the 4 to 6 milliamp range. Type B and Type EV (sometimes labeled SPGFCI, or special-purpose ground-fault circuit interrupter) detect a wider range of leakage current, including the smooth DC leakage that EV charging equipment can produce. Industry guidance consistently points to Type B or Type EV devices as the better match for EV circuits, precisely because standard Type A units weren’t designed with EVSE leakage profiles in mind.

Here’s the practical breakdown:

• Type A GFCI: Common, inexpensive, but prone to nuisance tripping when paired with EVSE that has its own internal CCID.
• Type B GFCI: Detects broader leakage patterns and is increasingly the recommended choice for dedicated EV circuits.
• Type EV / SPGFCI: Purpose-built for electric vehicle charging loads, often the safest bet for compatibility.
• No external GFCI: Appropriate for many hardwired installs where the charger’s internal protection already satisfies the code intent.

Pro Tip: Before you buy a breaker, check your charger’s installation manual. Manufacturers frequently specify exactly which GFCI type works with their equipment, and installing the wrong one is one of the most common causes of a charger that won’t hold a charge overnight.

Talk to your electrician about panel compatibility too. Not every panel brand stocks Type B or Type EV breakers, and an installer who’s wired a dozen EV circuits will know which brands play nicely together before you spend money on the wrong part.

What Wire and Breaker Sizes Do Common Level 2 Installs Actually Need?

Numbers help here more than generalities. If you’re pricing out a job or double-checking a quote, these are the specs that show up again and again in real Level 2 installations.

A 40 amp charger typically runs on a 50 amp breaker with 8 AWG copper conductors. A 48 amp charger, which is close to the maximum most residential panels can comfortably support, generally calls for a 60 amp breaker paired with 6 AWG copper wiring. Both examples follow the same underlying math: take the charger’s continuous amp rating and multiply by 1.25 to find the minimum breaker size.

Beyond the wire gauge and breaker rating, a few other details separate a clean install from a callback:

• Conduit sizing needs to accommodate the conductor gauge without overfilling, especially on longer runs from the panel to the garage.
• Outdoor or garage receptacles need weatherproof, in-use rated covers, not just a standard cover plate.
• Termination torque matters. Loose connections at the breaker or receptacle are a common source of overheating and nuisance tripping down the line.
• Box sizing should account for the larger conductors that 40 amp and higher circuits require.

Keep in mind that your local jurisdiction has the final say. An inspector working under an older NEC cycle, or one enforcing a local amendment, might require different sizing than what a national wiring guide suggests. When in doubt, confirm with your electrician before conductors go in the wall.

Why Does My EV Charger Keep Tripping the GFCI?

A nuisance trip isn’t the same as a real ground fault, and telling the two apart saves you from an unnecessary service call. A genuine ground fault means current is escaping the intended circuit path, often through moisture, damaged insulation, or a failing component. A nuisance trip means the GFCI shut things down even though nothing was actually wrong, usually because it’s overly sensitive to normal EVSE operation.

Work through these steps in order before you assume the worst:

1. Check for redundant protection. If your charger has internal CCID and you’ve also got an external Type A GFCI, that overlap is a leading cause of trips.
2. Rule out moisture. Inspect the receptacle, cord end, and charger housing for condensation or water intrusion, especially after rain.
3. Inspect the cord and receptacle for damage. Cracked insulation or a loose receptacle connection can mimic a ground fault.
4. Consider panel harmonics. Some panels with heavy simultaneous loads introduce electrical noise that trips sensitive GFCIs.
5. Swap to an EV-compatible breaker. If a standard Type A GFCI is the culprit, moving to a Type B or Type EV device often resolves the issue outright.

Pro Tip: If trips happen only during specific weather or only after several hours of continuous charging, note the pattern before calling anyone. That detail alone can point an electrician straight to moisture intrusion or thermal buildup instead of a wild guess.

If you’ve worked through this list and the charger still trips, stop troubleshooting and call a licensed electrician. Repeated trips on a high-amperage circuit are not a DIY problem to keep chasing.

What Do Inspectors Check for GFCI Compliance?

Most jurisdictions require a permit for Level 2 EV charger installations, and skipping that step can jeopardize your homeowner’s insurance and any resale disclosures down the line. Permits also mean an inspector reviews the work before it’s buried behind drywall or a panel cover.

During inspection, expect scrutiny on:

• Breaker size relative to the charger’s continuous amp rating (the 125% rule again)
• Conductor ampacity matching the breaker and expected load
• Proper grounding and bonding at the panel and receptacle
• GFCI presence where NEC 625.54 or 210.8 applies
• Weatherproof, in-use covers on any outdoor receptacle installation
• A disconnect if your local code or utility requires one for the charger’s amperage

Before work starts, confirm whether your area has adopted NEC 2020, NEC 2023, or an earlier cycle with local amendments, since enforcement varies by jurisdiction. A quick call to your authority having jurisdiction (AHJ) or a conversation with your licensed electrician clears up any ambiguity before the wire even gets pulled.

Installer-Ready Checklist and Where Chargeprodirect Fits

Before you buy anything, walk through this: your EV’s maximum acceptance rate in amps, how much spare capacity your panel actually has, whether portability matters to you, what weatherproofing your install location needs, and whether your city requires a permit for the work.

Chargeprodirect’s breaker sizing guide walks through the wire gauge and amperage math in more detail, and the charger placement checklist covers where to mount your unit for both code compliance and everyday convenience.

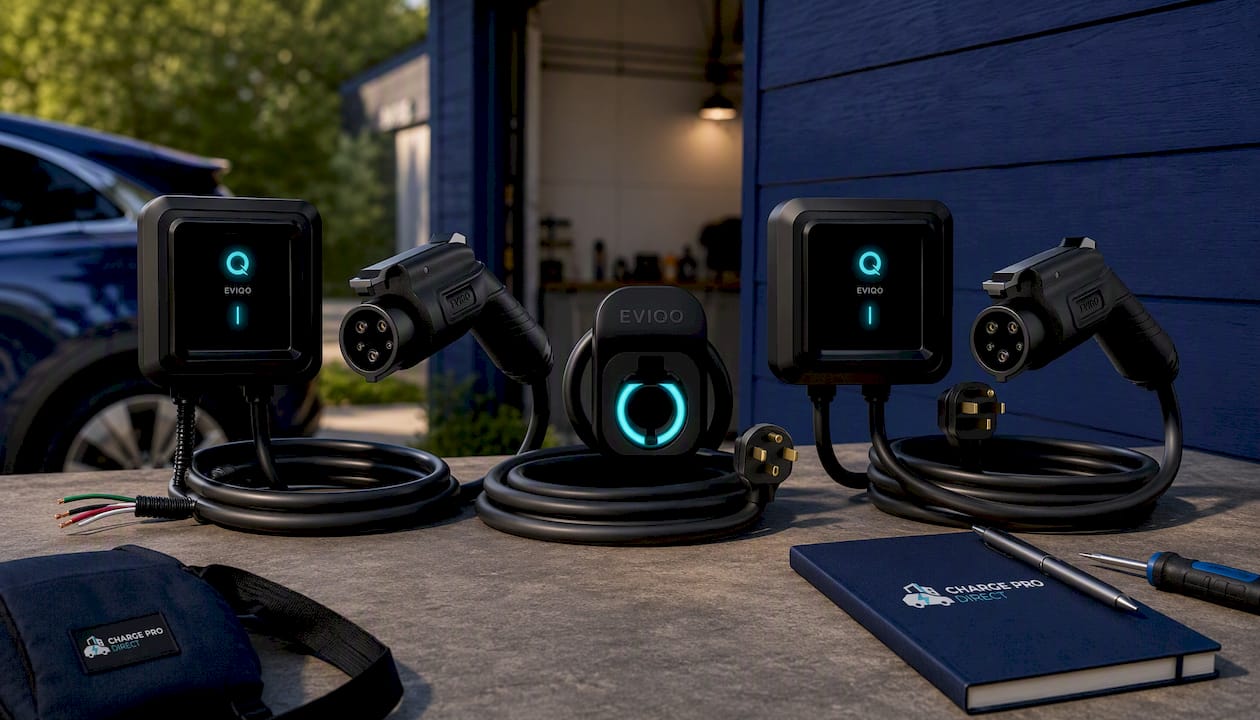

For most permanent installs, a hardwired EVIQO 48A unit sidesteps the receptacle GFCI question entirely. For anyone who needs to unplug and take their charger along, the EVIQO 40A NEMA 14-50 plug-in version fits that need without sacrificing Level 2 speeds.

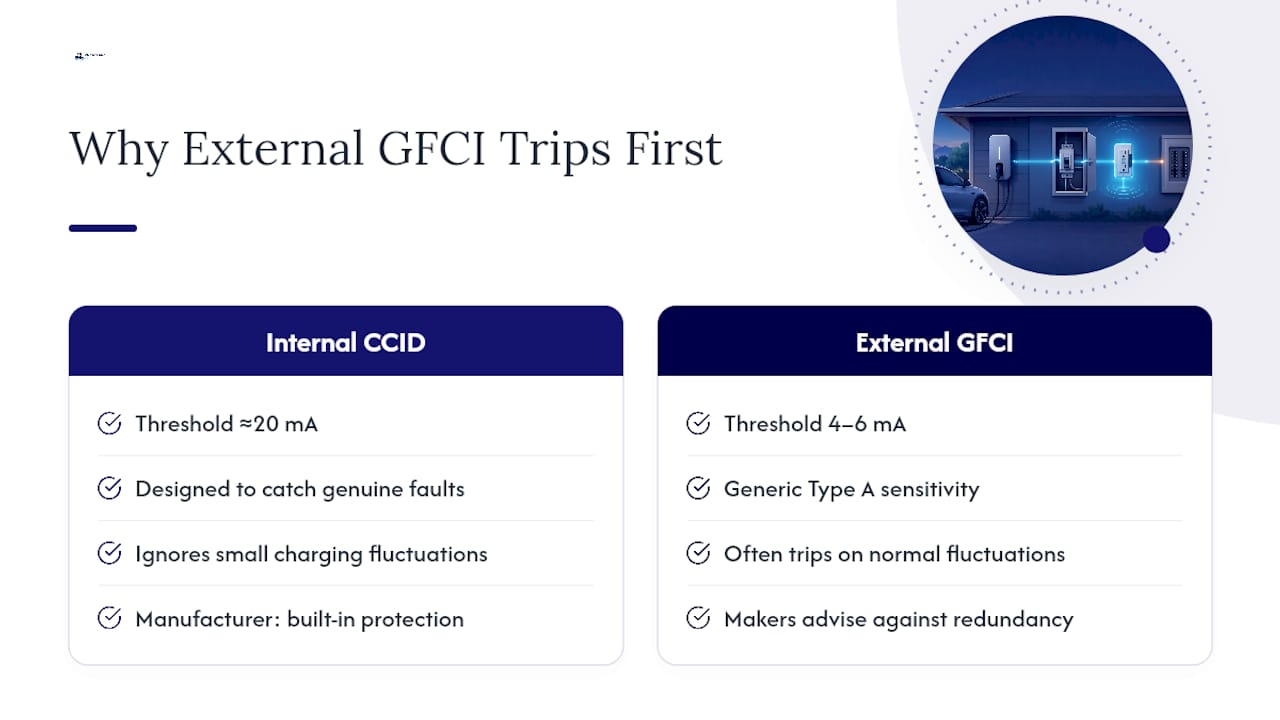

How Nuisance Trips Happen and Why CCID Complicates the Picture

Most nuisance trips trace back to one root cause: two devices doing the same job at different sensitivity thresholds. Your EV charger’s internal CCID typically monitors for ground faults around 20 milliamps, while a standard external GFCI trips at roughly 4 to 6 milliamps. When both sit on the same circuit, the external GFCI often reacts first to normal current fluctuations that the CCID would have safely ignored.

This isn’t a flaw in either device. It’s a mismatch. The charger manufacturer designed the CCID to catch genuine faults without overreacting to the small current variations that happen naturally during charging, especially at startup or when the vehicle’s onboard computer cycles the charging rate. A generic Type A GFCI wasn’t built with that behavior in mind.

Manufacturer documentation increasingly addresses this directly. Several EVSE makers now advise against adding an external GFCI when the unit already has built-in ground-fault protection, warning that the redundant protection creates exactly the nuisance-trip pattern homeowners find so frustrating. If your charger’s manual includes this kind of guidance, follow it. It’s written specifically because the manufacturer has already seen the support tickets from customers who didn’t.

The fix usually comes down to matching the protection to the equipment: either remove the redundant external device where code allows, or upgrade to a Type B or Type EV breaker built to work alongside internal CCID rather than against it.

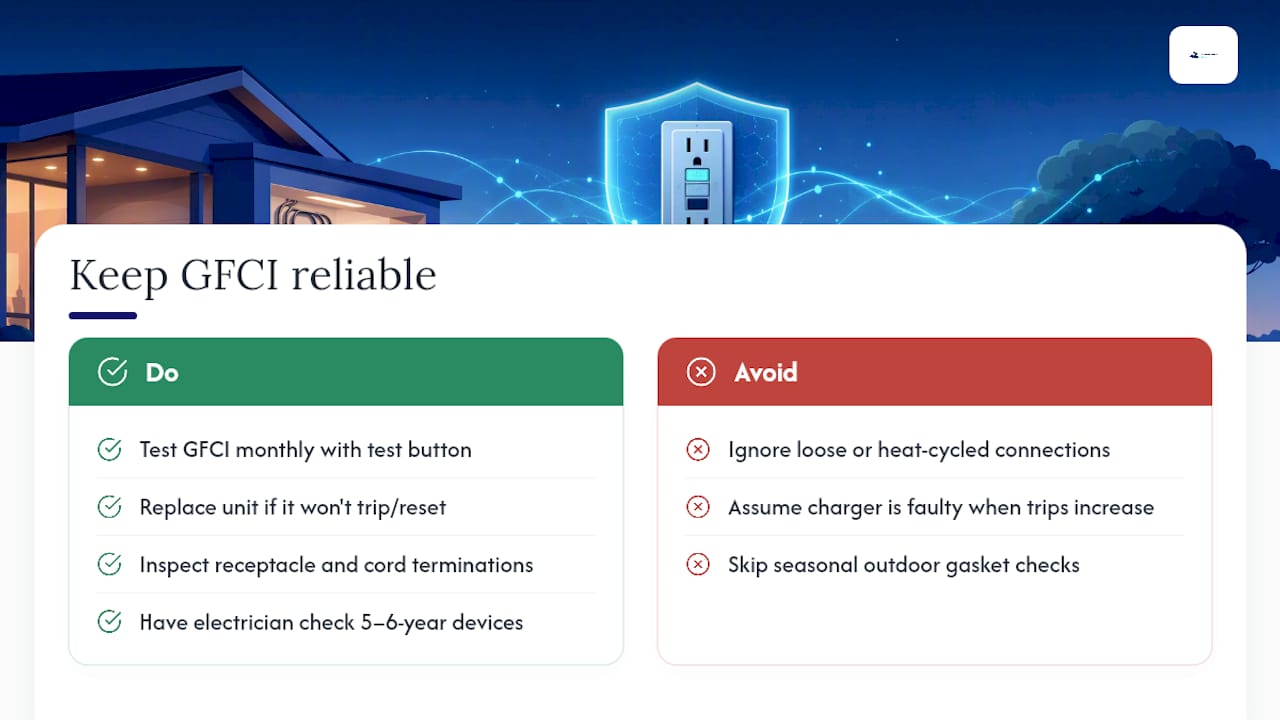

How Do You Keep a GFCI Working Reliably for Years?

GFCI devices don’t last forever, and EV charging puts them through more work than a typical household outlet ever sees. A charger drawing 30 to 48 amps for six or eight hours straight, night after night, is a very different load profile than a hair dryer running for two minutes.

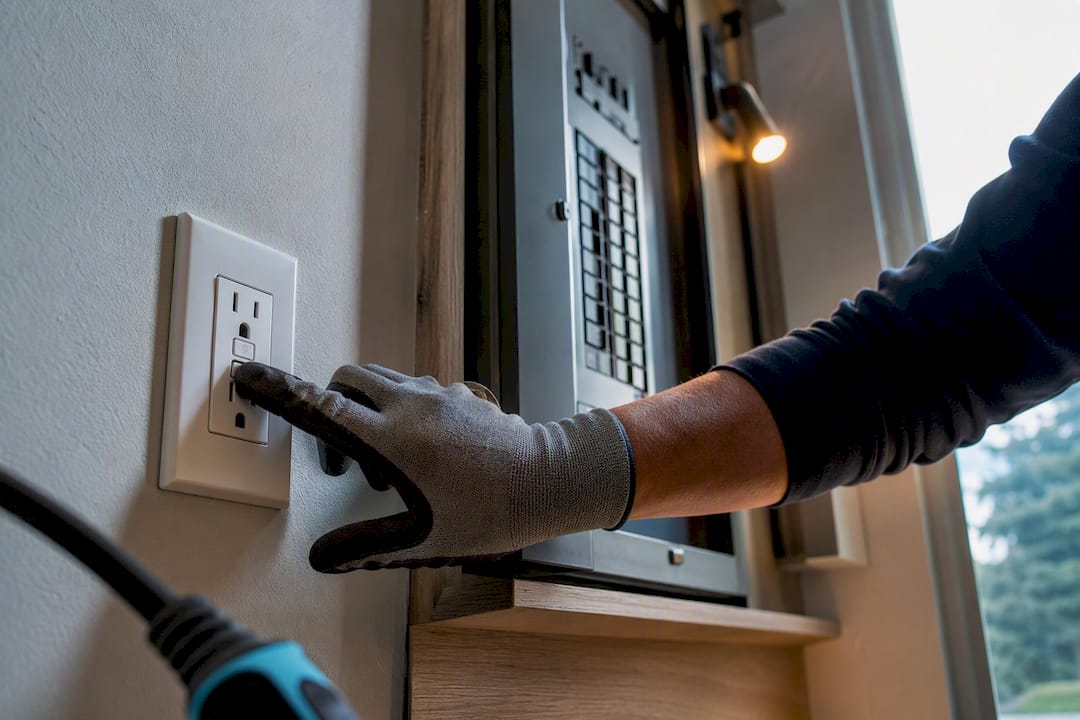

Test your GFCI monthly using its built-in test button, the same way you’d check a bathroom outlet. If it fails to trip or fails to reset cleanly, that’s your signal to replace it before it fails during an actual fault. Keep an eye on the receptacle and cord connections too. Heat cycling from repeated high-amp charging sessions can loosen terminations over time, and a loose connection is one of the more common causes of intermittent trips that seem to appear out of nowhere.

Outdoor installations need extra attention. Check the in-use cover for cracks or warping each season, and make sure the gasket still seals properly against rain and snow. Moisture intrusion doesn’t always cause an immediate trip. Sometimes it shows up months later as corrosion that degrades the connection gradually.

If you notice trips becoming more frequent as your charger ages, don’t assume the charger itself is failing. Ground-fault devices, whether internal CCID or external breakers, are mechanical and electronic components with a service life. A five or six year old GFCI breaker working through daily EV charging cycles has earned a second look from your electrician, even if it still technically passes a manual test.

Why We Usually Point Homeowners Toward Hardwired Installs

Nuisance trips are rarely a mystery once you’ve seen the pattern enough times: two protection devices, one circuit, and a charger that quietly fails to finish charging overnight. Hardwiring removes one of those devices from the equation entirely.

It also tends to support higher sustained output without the plug-and-receptacle ratings holding you back. Fewer service calls, more consistent charging. That’s the tradeoff we see play out again and again in homeowner installations.

— Clarissa

Which EVIQO Charger Matches Your Installation Plan?

If nuisance trips and long-term reliability matter more to you than the ability to unplug and move your charger, a hardwired setup solves that problem at the source instead of forcing you to manage GFCI compatibility for years. That’s exactly where a hardwired charger earns its keep over a plug-in unit.

For permanent installations where you want maximum sustained output and want to sidestep the receptacle GFCI question entirely, the EVIQO 48A hardwired charger is built for exactly that scenario, with support up to 50A max on a properly sized circuit. If portability matters more, whether you’re renting, planning a move, or just want the flexibility to unplug for another 240V appliance, the EVIQO 40A NEMA 14-50 plug-in delivers 9.6kW without requiring a hardwired connection. Homeowners who want that same portability but with more headroom can look at the EVIQO 48A plug-in model at 11.5kW, keeping the 125% continuous-load rule in mind when sizing the circuit. Browse the full lineup and use sizing guidance to match the right model to your panel and your driving habits before you check out.

FAQ

Do EV chargers need to be on a GFCI circuit?

Plug-in EV charging receptacles need GFCI protection under NEC 625.54, regardless of indoor or outdoor location. Hardwired chargers often rely on internal protection instead, subject to local code adoption.

Do Tesla car chargers have built-in GFCI protection?

Many Tesla and third-party EVSE units include internal ground-fault protection (CCID) as part of their design, which is why hardwired Tesla installations often don’t require a separate external GFCI. Always confirm requirements with your electrician and local jurisdiction, since local amendments can differ.

Is a 50 amp GFCI breaker required for an EV charger?

It depends on your charger’s amperage and whether it’s plug-in or hardwired. A 40 amp charger typically needs a 50 amp breaker under the 125% continuous-load rule, and GFCI protection applies if the installation uses a receptacle under NEC 625.54.

Can I use Romex for an EV charger?

NM cable (commonly known as Romex) can be used for some EV charger circuits when local code allows it and the run meets ampacity, protection, and installation requirements, but many installers prefer conduit with individual conductors for durability and future flexibility. Check with your electrician and AHJ before finalizing your wiring plan.
